8196 LTR Headset Cup/BB Cup Press Tool

Item(s) need Lubrication

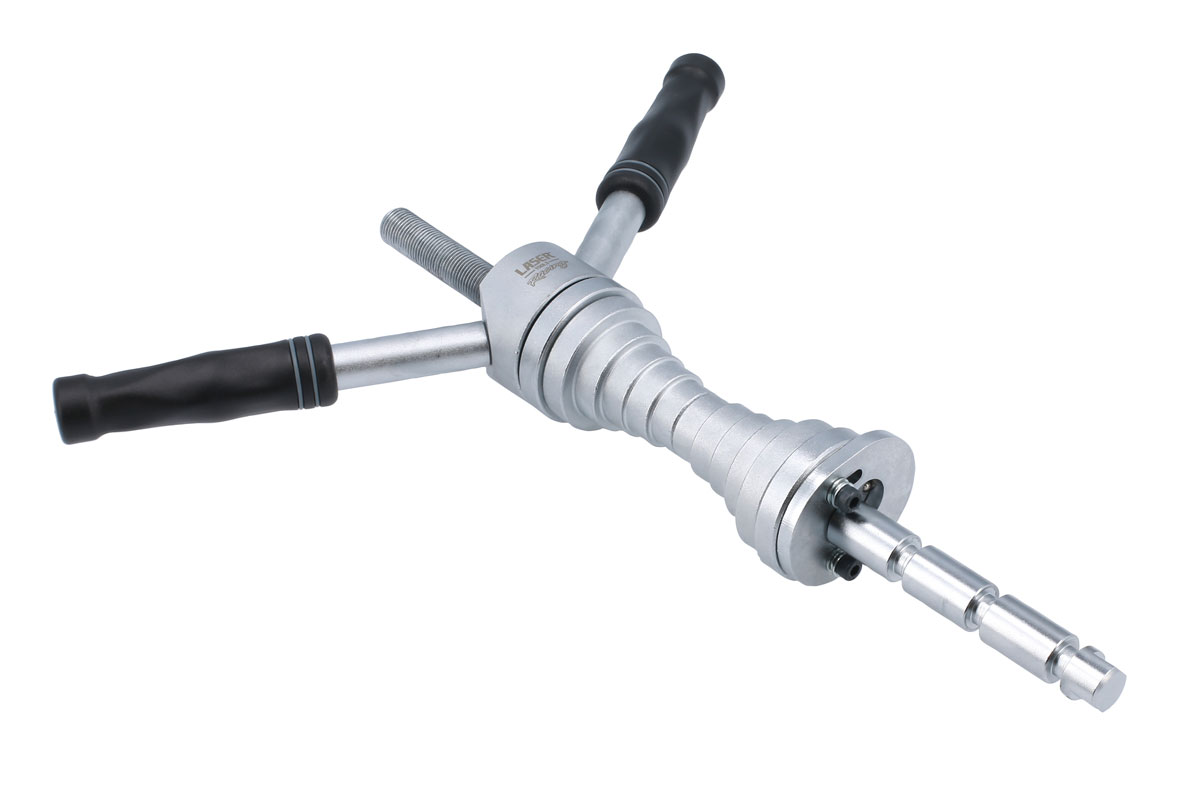

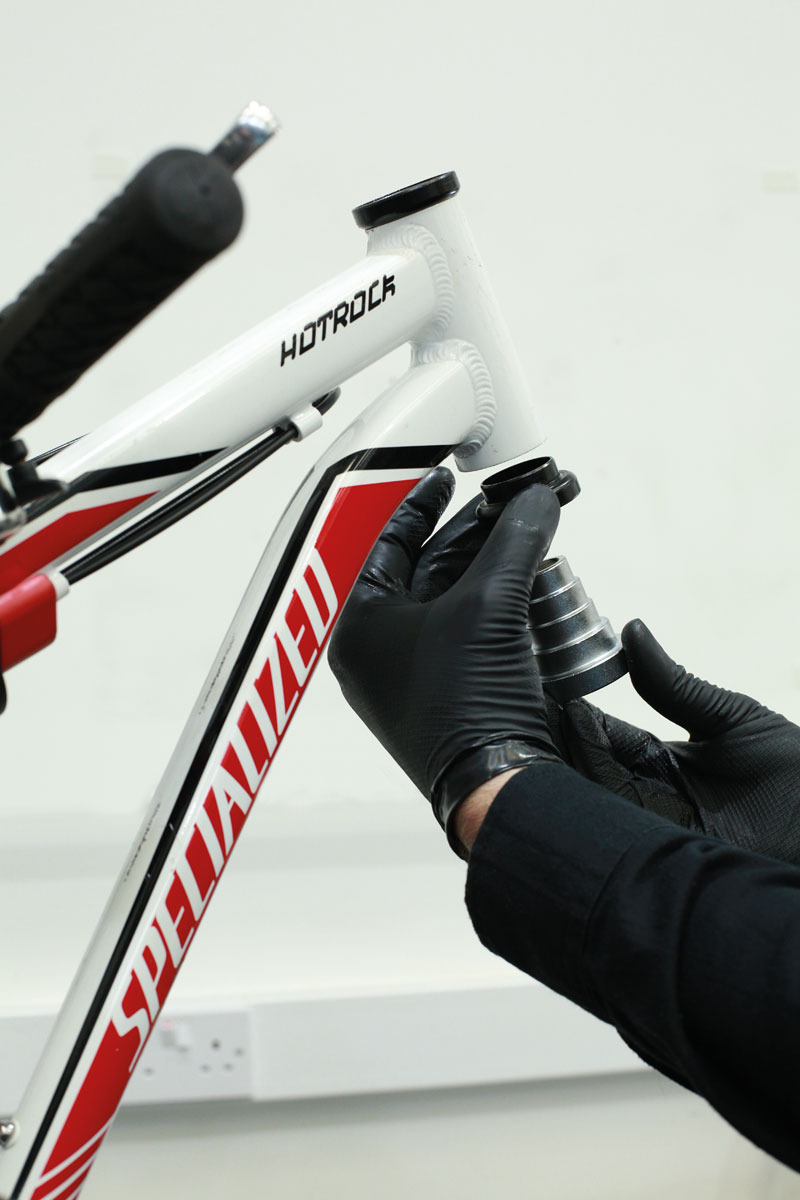

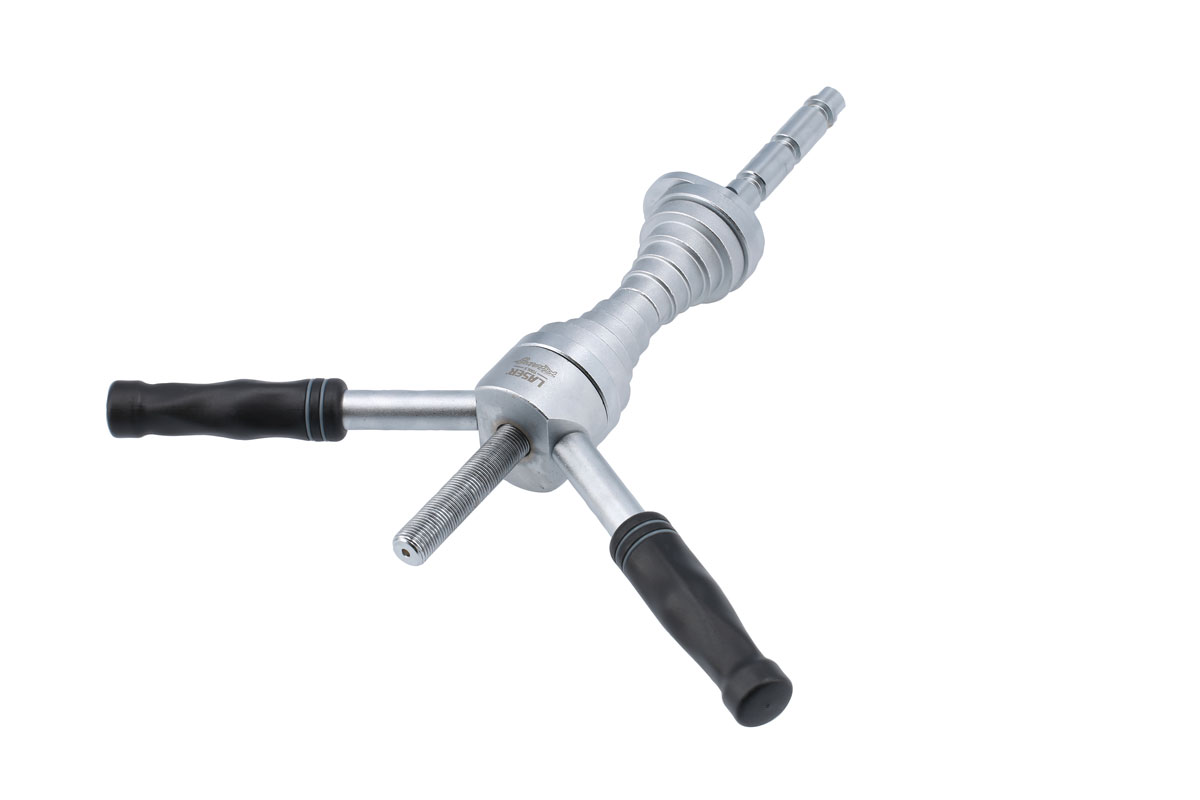

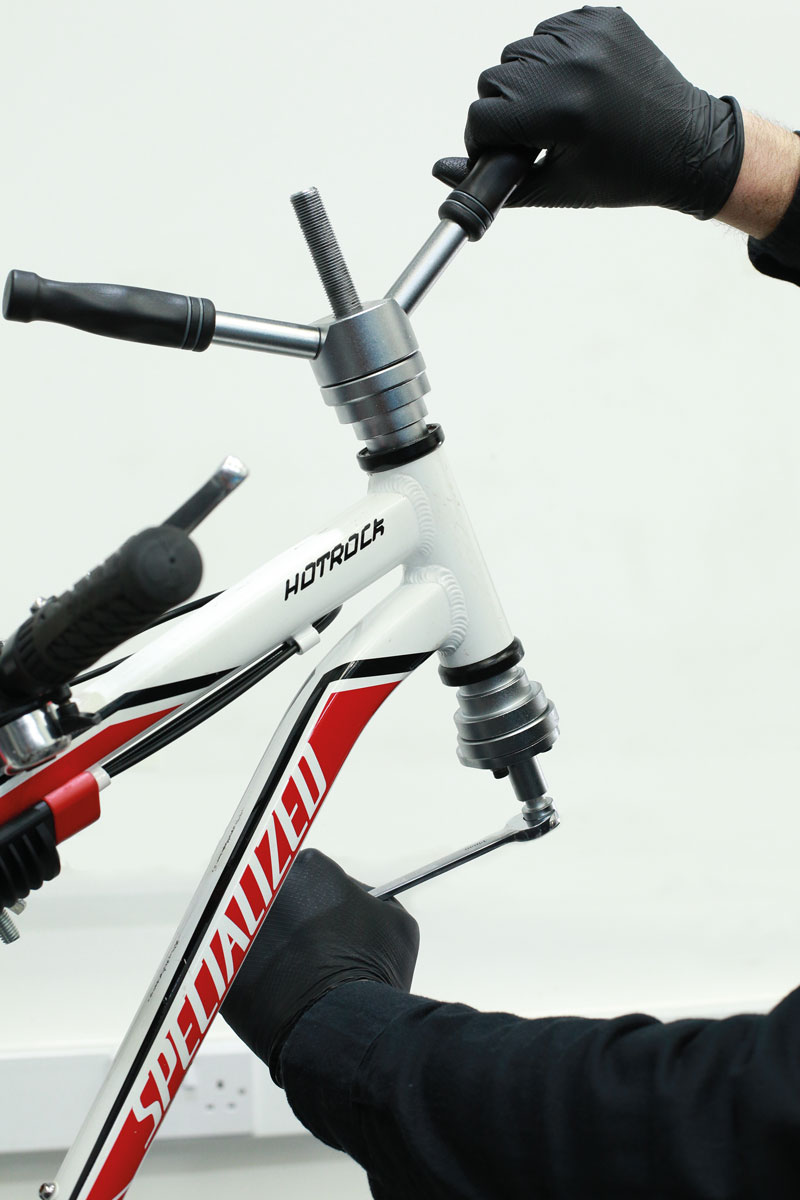

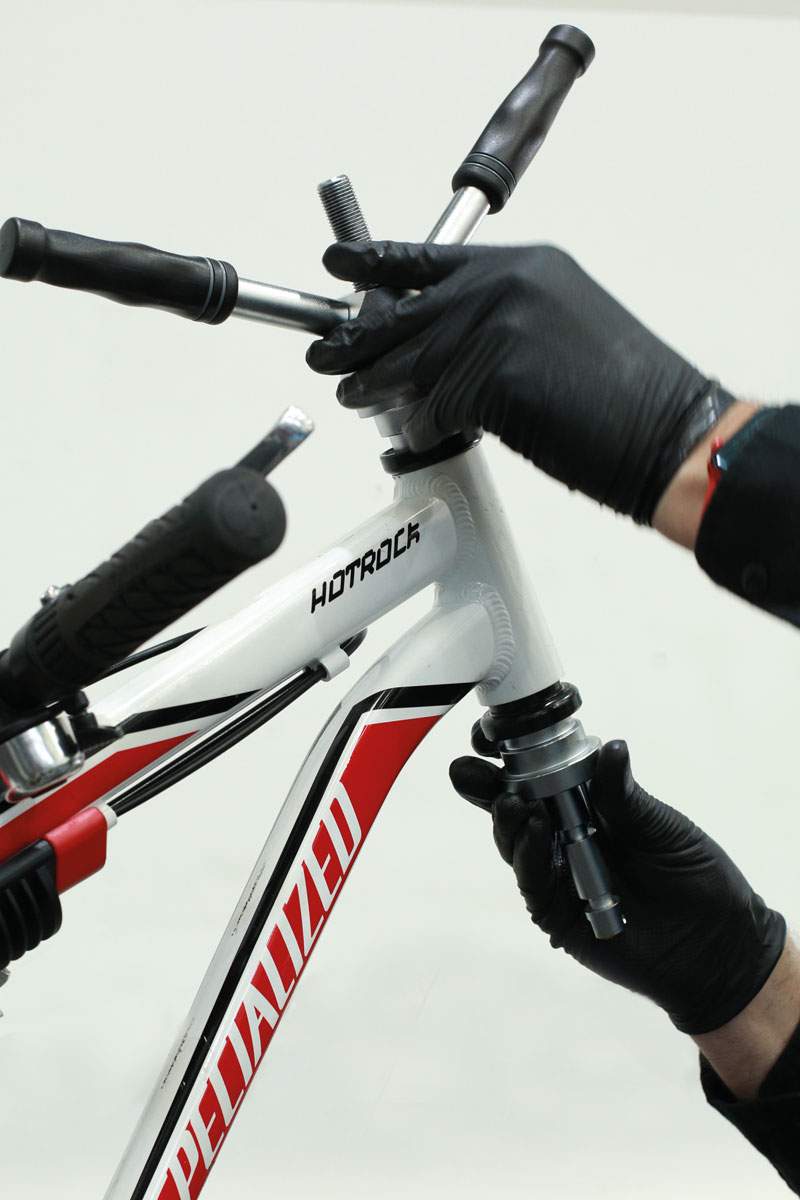

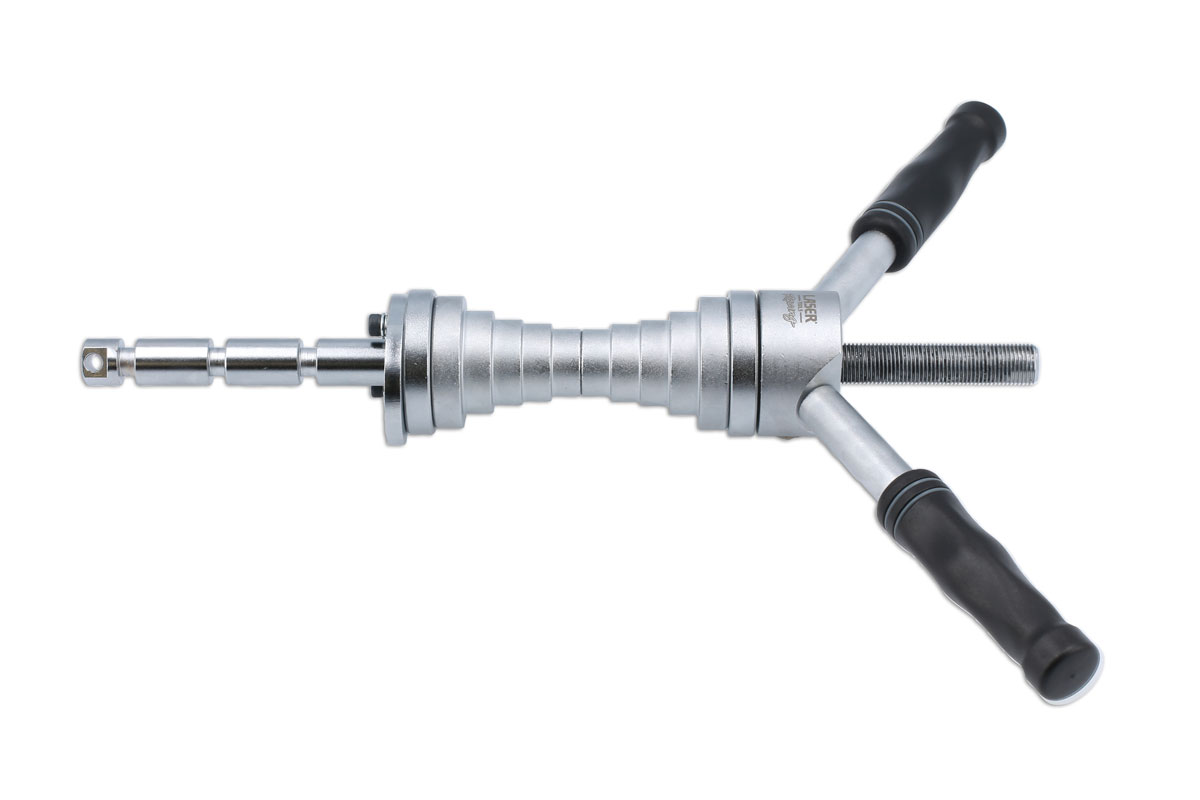

Allows for the quick and easy installation of headset cups and press fit bottom brackets without risking damage to the frame. The stepped cup guides ensure the cups are correctly supported and sitting straight when being pressed into the frame. The handles have a cushioned grip and the fine thread allows for precise adjustment when applying the force necessary to press the cups into the frame. It also features a quick release system so that it does not have to be fully unwound to be removed from the frame.

  • For the installation of headset cups and press fit bottom brackets.
  • Fits most standard 1", 1 1/8", 1 1/4" and 1 1/2" headset cups.
  • Helps to prevent misalignment when pressing headset races.
  • For use with a 14mm spanner, please see Laser Part No. 1558.
  • IMPORTANT: ensure the threaded bar is well lubricated with molybdenum disulphide grease before use.
TSP: £235.12 ex VAT £282.14 inc VAT

Zur schnellen, einfachen Montage von Steuersatz-Lagerschalen und Einpress-Innenlagern, ohne Gefahr zu laufen, den Rahmen zu beschädigen. Die abgestuften Lagerschalenführungen stellen sicher, dass die Lagerschalen korrekt gehalten und gerade in den Rahmen eingepresst werden. Die gepolsterten Griffe und das Feingewinde ermöglichen eine einfache Drehung und präzise Einpassung, trotz des zum Einpressen der Lagerschalen in den Rahmen erforderlichen Kraftaufwands. Durch den Schnelllösemechanismus entfällt ein aufwändiges Zurückdrehen, um das Werkzeug wieder aus dem Rahmen zu entnehmen.

  • Zur Montage von Steuersatz-Lagerschalen und Einpress-Innenlagern.
  • Für alle gängigen Steuersatz-Lagerschalen 1", 1 ⅛", 1 ¼", und 1 ½".
  • Verhindert eine Fehlausrichtung beim Einpressen von Gabelkonussen.
  • Für den Einsatz mit einem 14-mm-Schlüssel siehe Laser Teile-Nr. 1558.
  • WICHTIG: Bitte sicherstellen, dass die Gewindestange vor dem Gebrauch mit Molybdändisulfidfett geschmiert wurde.
TSP: £235.12 ex VAT £282.14 inc VAT

Permet l'installation rapide et facile de cuvettes de direction et de boîtiers de pédalier emmanchés sans risque d'endommager le cadre. Ces guides de cuvette à épaulements garantissent que les cuvettes sont correctement soutenues et parfaitement orientées lorsqu'elles sont enfoncées dans le cadre. Les poignées ont une prise rembourrée et le filetage à pas fin assure une rotation régulière et permet également un réglage précis en exerçant la force nécessaire pour enfoncer les cuvettes dans le cadre. L'outil comporte également un système de dégagement rapide de sorte qu'il n'est pas nécessaire de le dévisser complètement pour le retirer du cadre.

  • Pour l'installation de cuvettes de direction et de boîtiers de pédalier emmanchés.
  • Convient à la plupart des cuvettes de direction standard de 25,4 mm (1"), 28,6 mm (1 ⅛"), 31,8 mm (1 ¼") et 38,1 mm (1 ½").
  • Permet d'éviter un alignement incorrect lors de la mise en place des bagues de cuvettes de direction.
  • Pour utilisation avec une clé de 14 mm, voir la référence Laser 1558.
  • IMPORTANT : veiller à bien lubrifier la barre filetée avec de la graisse au bisulfure de molybdène avant l'utilisation.
TSP: £235.12 ex VAT £282.14 inc VAT
Item(s) need Lubrication
 Buy Locally
Buy Online
Press Release Downloads
Useful Downloads
Laser Tools Racing Bicycle Brochure
View Brochure
Laser Tools Catalogue Page No 483
483 View Catalogue p.483

Press Release
Dedicated bike frame and fork tools from Laser Tools Racing
Dedicated bike frame and fork tools from Laser Tools Racing

Recent additions to the Laser Tools Racing brand bike tools and accessories range are a series of dedicated frame and fork tools suitable for installing and removing headsets, threading cables through internally routed frames, and checking dropout alignment. Pictured here are an internal cable routing tool suitable for installing brake and gear cables (part number 8174), a start nut setter for installing a star-fangled nut into a fork steerer (8189), a headset cup removal tool (8167), a crown race setter (8201) and finally a headset press (8196).

The 8174 internal cable routing tool is used when guiding new cables through an internally routed frame — this kit uses magnets to make light work of a task that can be both time-consuming and frustrating. It comes supplied with adaptors to fit inner gear and brake cables, Shimano Di2 wires (e-Tube cables), outer gear and brake
housing, and hydraulic brake lines.

The star nut setter (8189) is required for installing new star nuts into threadless fork steerers to the required depth and at a straight angle first time. As it is for use with a dead blow hammer, the handle has been designed to help protect the user’s hand.

The 8167 headset cup removal tool allows for the quick, easy and safe removing of bearing cups from a bicycle frame. Designed to slide through the frame until the sprung end engages onto the top of the cup allowing for a simple hammer blow to remove it without causing damage.

The crown race setting tool (8201) is used for the installation of a fork crown race, the lowest part of a headset. Ensures the race is correctly fitted and set, without causing damage to either the forks or the crown race and bearing surface.

The headset press (8196) allows for the quick and easy installation of headset cups and press-fit bottom brackets, without risking damage to the frame. The stepped cup guides ensure the cups are correctly supported and sitting straight when being pressed into the frame. The handles have a cushioned grip and the fine thread
makes it smooth to turn and also allows for precise adjustment when applying the force necessary to press the cups into the frame. It also features a quick release system so that it does not have to be fully unwound to be removed from the frame.

The range is available to order now from your local Laser Tools dealer.
