8201 LTR Crown Race Setting Tool

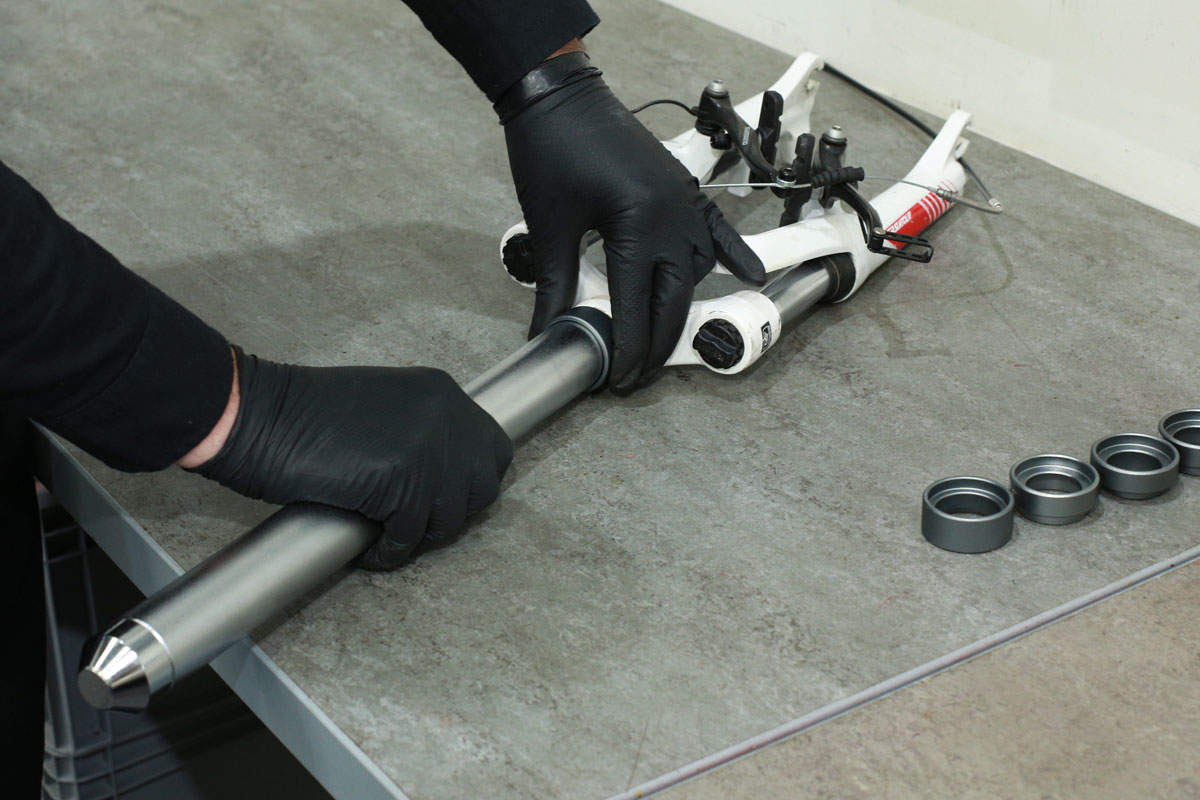

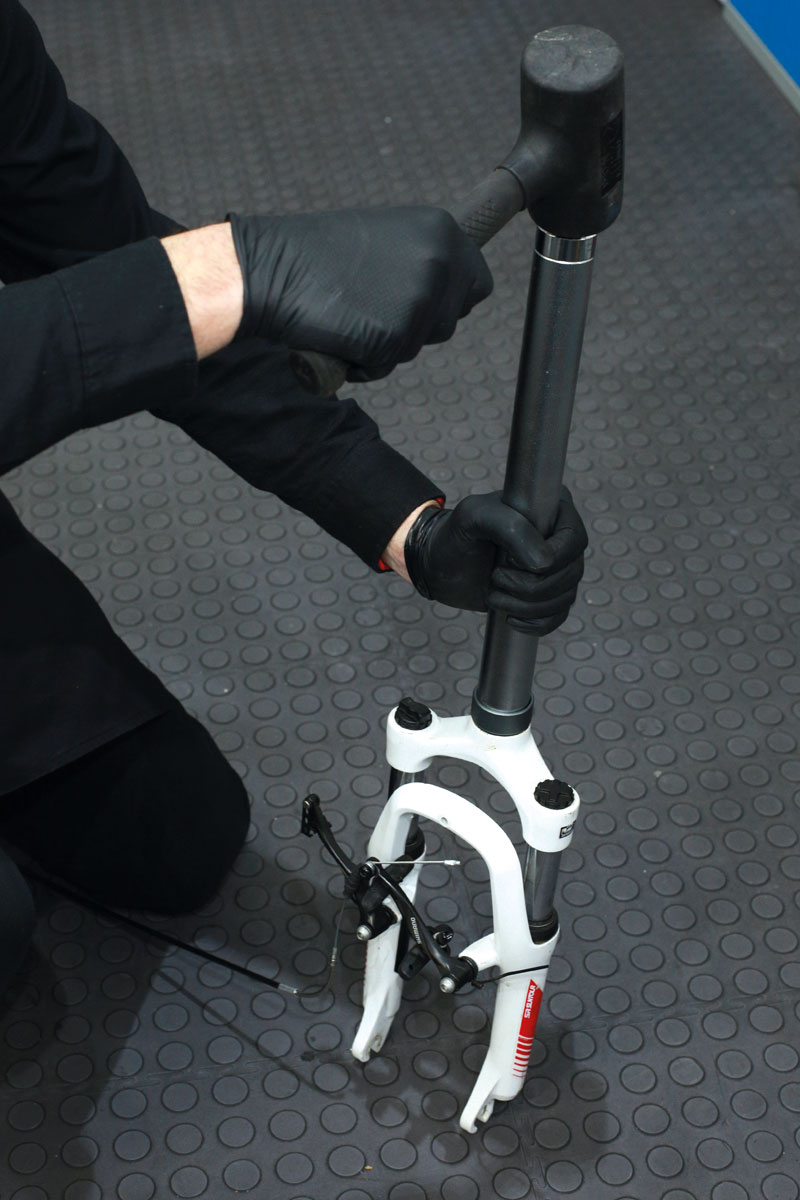

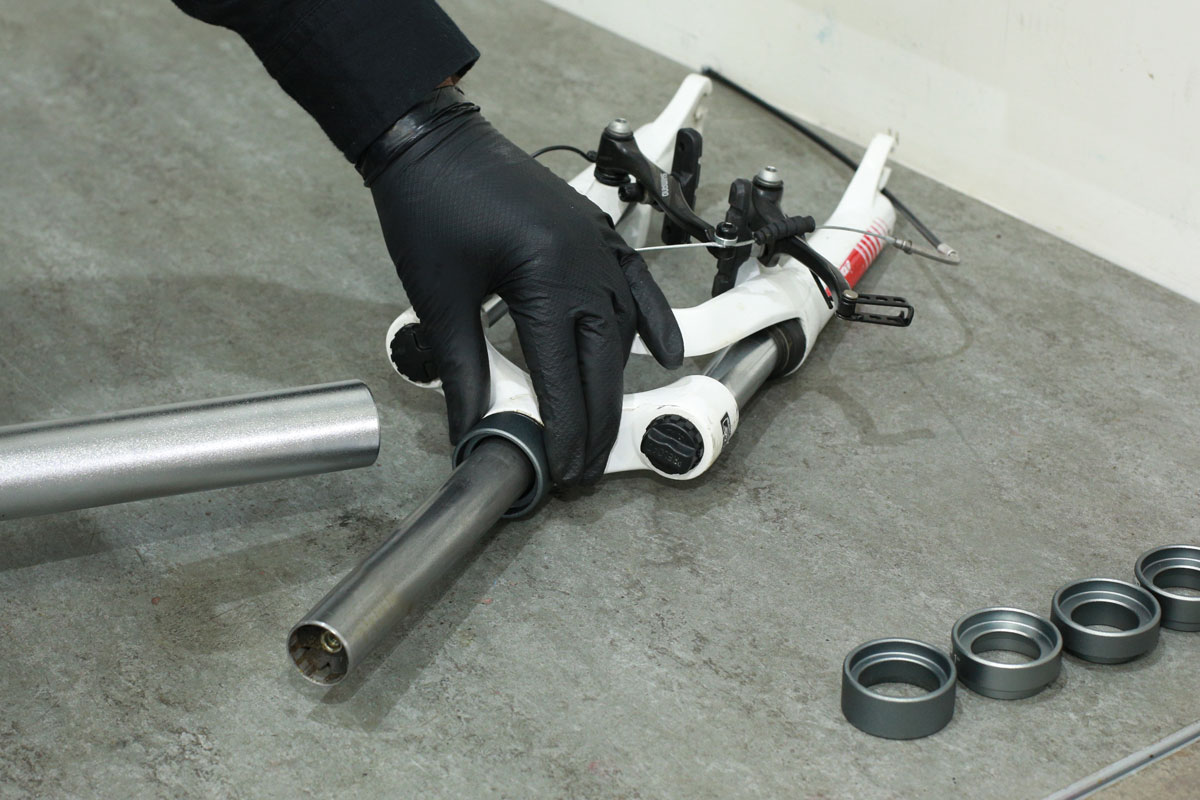

Used for the installation of a fork crown race, the lowest part of a headset. Ensures the race is correctly fitted and set, without causing damage to either the forks or the crown race and bearing surface. Simply select the correct size adaptor so that it sits on the outside shoulder of the crown race, slide the setting tool onto the fork steerer and tap the end cap firmly with a dead blow hammer until the race has been seated.

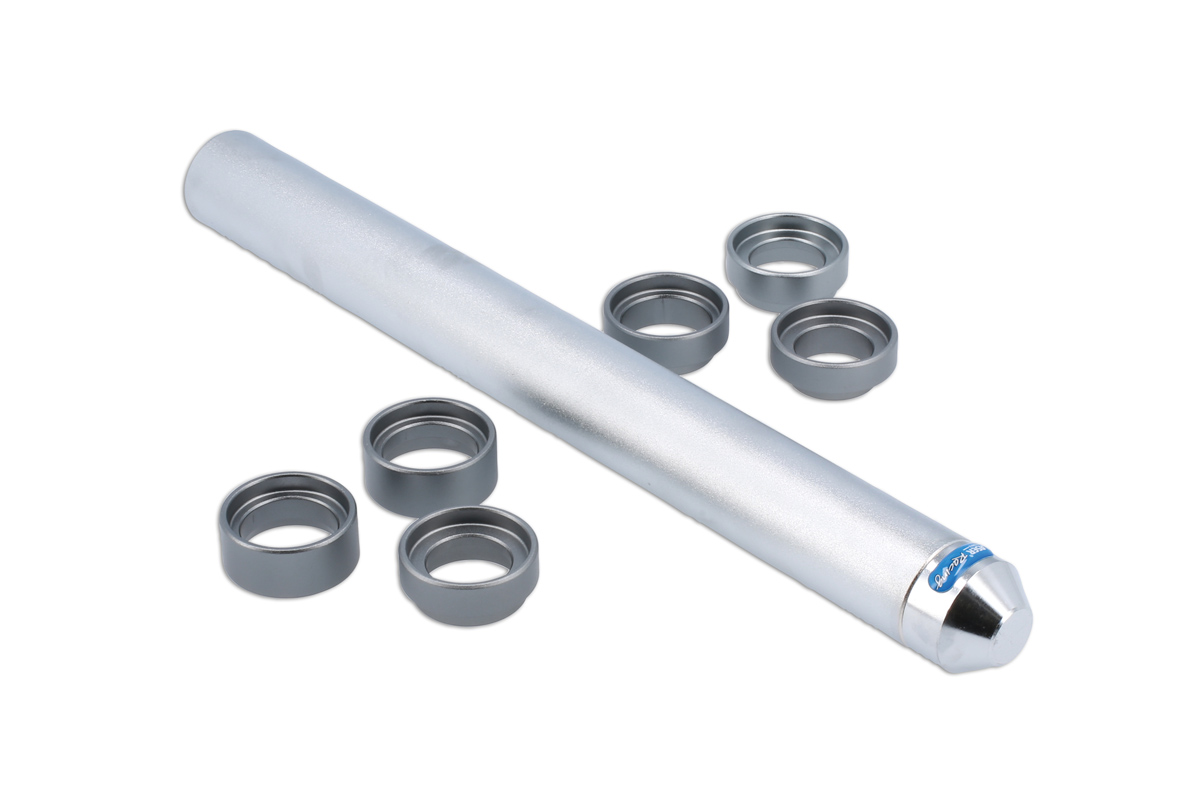

  • Crown race fitting tool for use on 1" and 1 1/8" crown races.

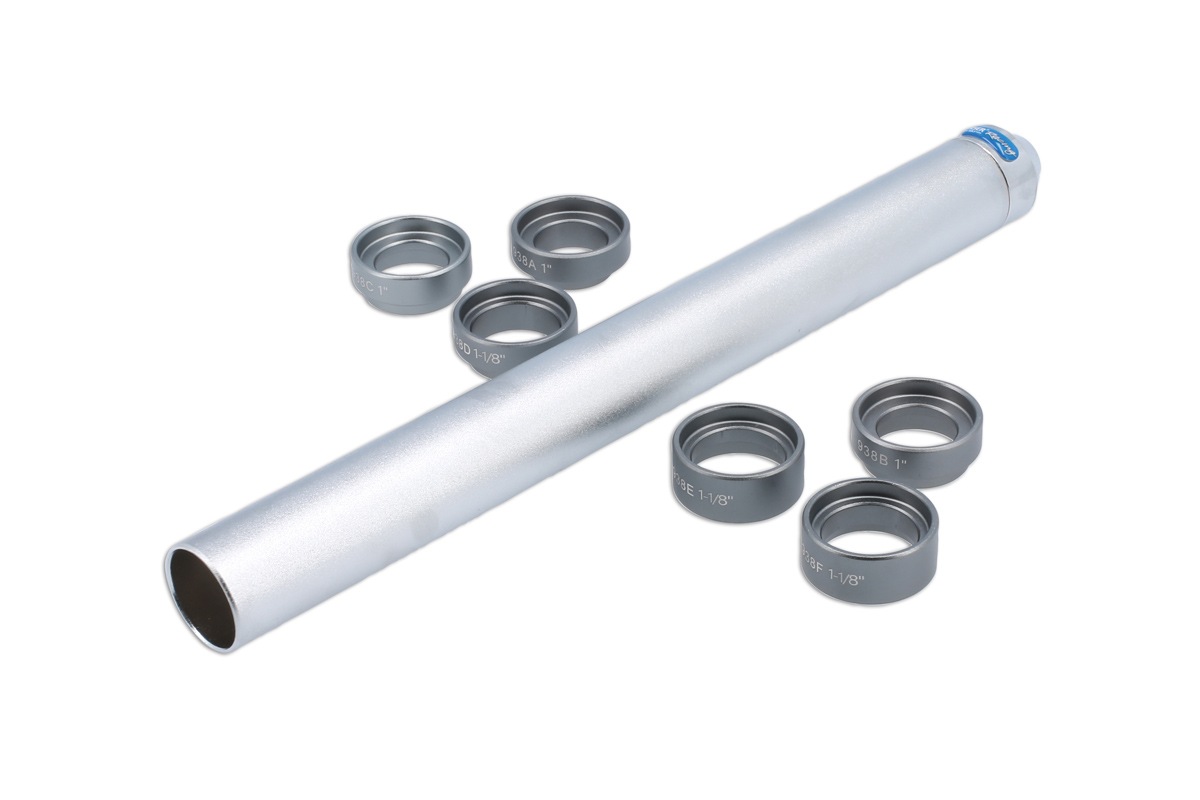

  • Includes one setting tool, plus 3 x 1" and 3 x 1 1/8" adaptor cups.
  • Fits fork steerers up to 340mm long.
  • For use with a dead blow hammer, please see Laser Part No. 2465.
  • Oversized version, 1 1/4" and 1 1/2" (1.5"), also available, please see Laser Part No. 8202.
TSP: £110.88 ex VAT £133.06 inc VAT

Zur Montage des Gabelkonus, dem untersten Teil des Steuersatzes. Das Werkzeug dient für das korrekte Aufschlagen und den richtigen Sitz des Gabelkonus, ohne dass Gabel, Konus oder Lager beschädigt werden. Einfach den passenden Adapter auswählen – er muss an der Außenseite des Konus auf dem Gabelschaft aufsitzen – dann das Aufschlagwerkzeug über den Gabelschaft schieben und mit einem Schonhammer fest auf die Endkappe schlagen, bis der Gabelkonus richtig sitzt.

  • Gabelkonusaufschlagwerkzeug zur Verwendung bei einem 1"- und 1⅛"-Gabelkonus.
  • Ein Aufschlagwerkzeug mit Adapterschalen 3 x 1" und 3 x 1 ⅛".
  • Für Gabelschaftlängen bis zu 340 mm.
  • Für den Einsatz mit einem Schonhammer siehe Laser Teile-Nr. 6577.
  • Übergröße, 1 ¼" & 1 ½" (1,5"), ebenfalls erhältlich – siehe Laser Teile-Nr. 8202.
TSP: £110.88 ex VAT £133.06 inc VAT

À utiliser pour l'installation d'une bague de couronne de fourche, la partie la plus basse d'une cuvette de direction. Garantit que la bague est correctement installée et en place, sans endommager la fourche ni la bague de la couronne et la surface de portée. Il suffit de sélectionner l'adaptateur de la taille correcte pour qu'il se place sur l'épaulement externe de la bague de couronne, de glisser l'outil de pose sur le tube de direction et de taper fermement sur le capuchon d'extrémité avec un marteau sans rebond jusqu'à ce que la bague soit en place.

  • Outil d'installation de bague de couronne à utiliser sur des bagues de couronne de 25,4 (1") et 28,6 mm (1 ⅛").
  • Comprend un outil de pose, plus 3 adaptateurs de 25,4 mm (1") et 3 de 28,6 mm (1 ⅛").
  • Pour des tubes de direction d'une longueur allant jusqu'à 340 mm.
  • À utiliser avec un marteau sans rebond, voir la référence Laser 6577.
  • Version surdimensionnée (31,8 (1 ¼") et 38,1 mm (1 ½")) également disponible, voir la référence Laser 8202.
TSP: £110.88 ex VAT £133.06 inc VAT
 Buy Locally
Buy Online
Press Release Downloads
Useful Downloads
Laser Tools Racing Bicycle Brochure
View Brochure
Laser Tools Catalogue Page No 483
483 View Catalogue p.483

Press Release
Dedicated bike frame and fork tools from Laser Tools Racing
Dedicated bike frame and fork tools from Laser Tools Racing

Recent additions to the Laser Tools Racing brand bike tools and accessories range are a series of dedicated frame and fork tools suitable for installing and removing headsets, threading cables through internally routed frames, and checking dropout alignment. Pictured here are an internal cable routing tool suitable for installing brake and gear cables (part number 8174), a start nut setter for installing a star-fangled nut into a fork steerer (8189), a headset cup removal tool (8167), a crown race setter (8201) and finally a headset press (8196).

The 8174 internal cable routing tool is used when guiding new cables through an internally routed frame — this kit uses magnets to make light work of a task that can be both time-consuming and frustrating. It comes supplied with adaptors to fit inner gear and brake cables, Shimano Di2 wires (e-Tube cables), outer gear and brake
housing, and hydraulic brake lines.

The star nut setter (8189) is required for installing new star nuts into threadless fork steerers to the required depth and at a straight angle first time. As it is for use with a dead blow hammer, the handle has been designed to help protect the user’s hand.

The 8167 headset cup removal tool allows for the quick, easy and safe removing of bearing cups from a bicycle frame. Designed to slide through the frame until the sprung end engages onto the top of the cup allowing for a simple hammer blow to remove it without causing damage.

The crown race setting tool (8201) is used for the installation of a fork crown race, the lowest part of a headset. Ensures the race is correctly fitted and set, without causing damage to either the forks or the crown race and bearing surface.

The headset press (8196) allows for the quick and easy installation of headset cups and press-fit bottom brackets, without risking damage to the frame. The stepped cup guides ensure the cups are correctly supported and sitting straight when being pressed into the frame. The handles have a cushioned grip and the fine thread
makes it smooth to turn and also allows for precise adjustment when applying the force necessary to press the cups into the frame. It also features a quick release system so that it does not have to be fully unwound to be removed from the frame.

The range is available to order now from your local Laser Tools dealer.
