9210 Bi-Directional Pneumatic Air/Slide Hammer

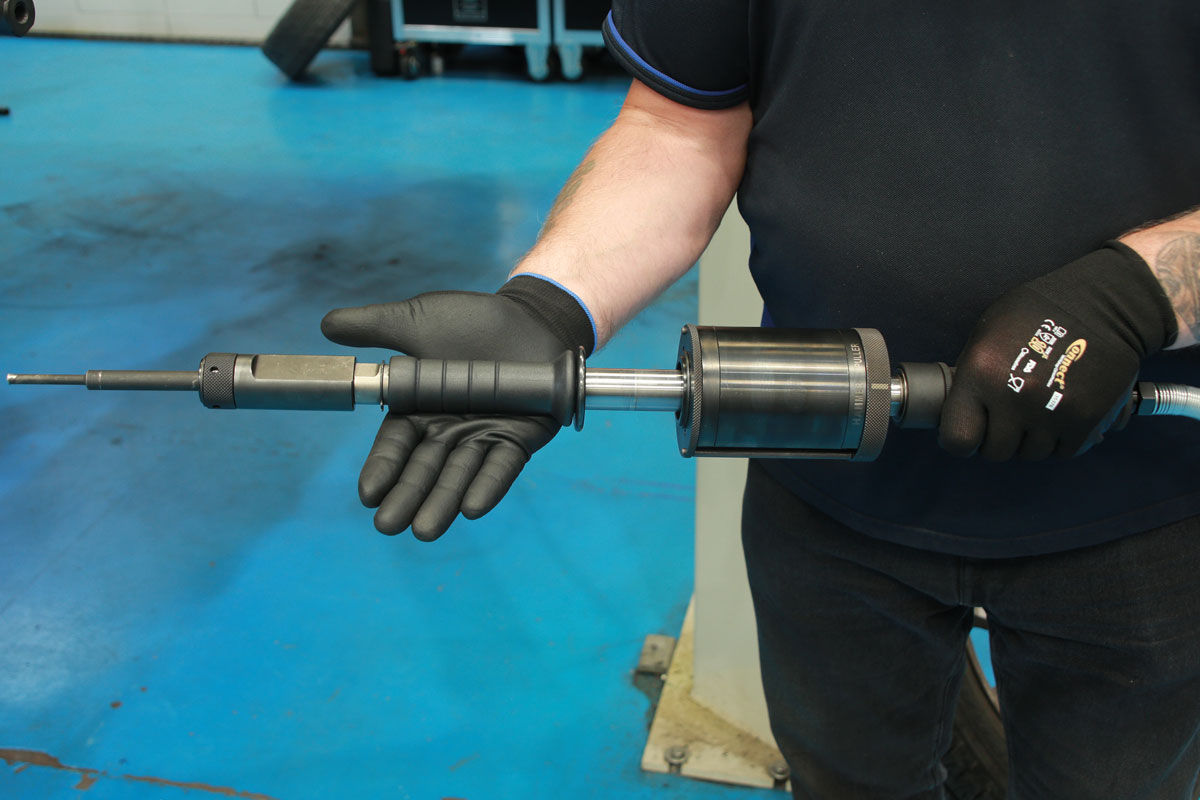

The Laser 9210 is a workshop air powered slide hammer, that uses standard workshop air to extract (pull) or insert (push) by automatically forcing the hammer weight in one direction or the other. Uses air hammer technology but set around a central shaft. In a standard slide hammer, the force that drives the impact is generated purely by the momentum of the sliding weight as it slams into the impact surface. This sudden stop translates a significant shock directly through the handle and the weight into the user's hands and arms. Over time, or with frequent use, this repetitive impact can lead to discomfort, fatigue, and even injuries like vibration white finger or carpal tunnel syndrome. The use of an air powered slide hammer significantly reduces this issue.

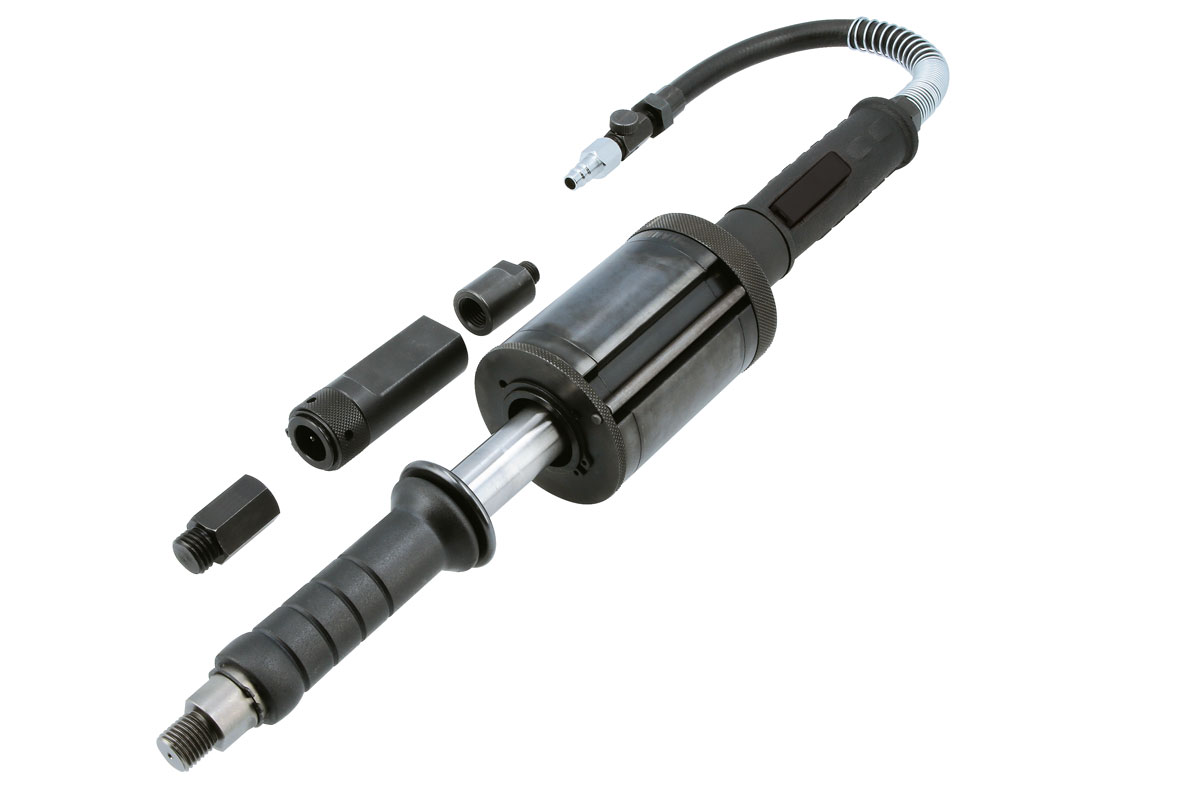

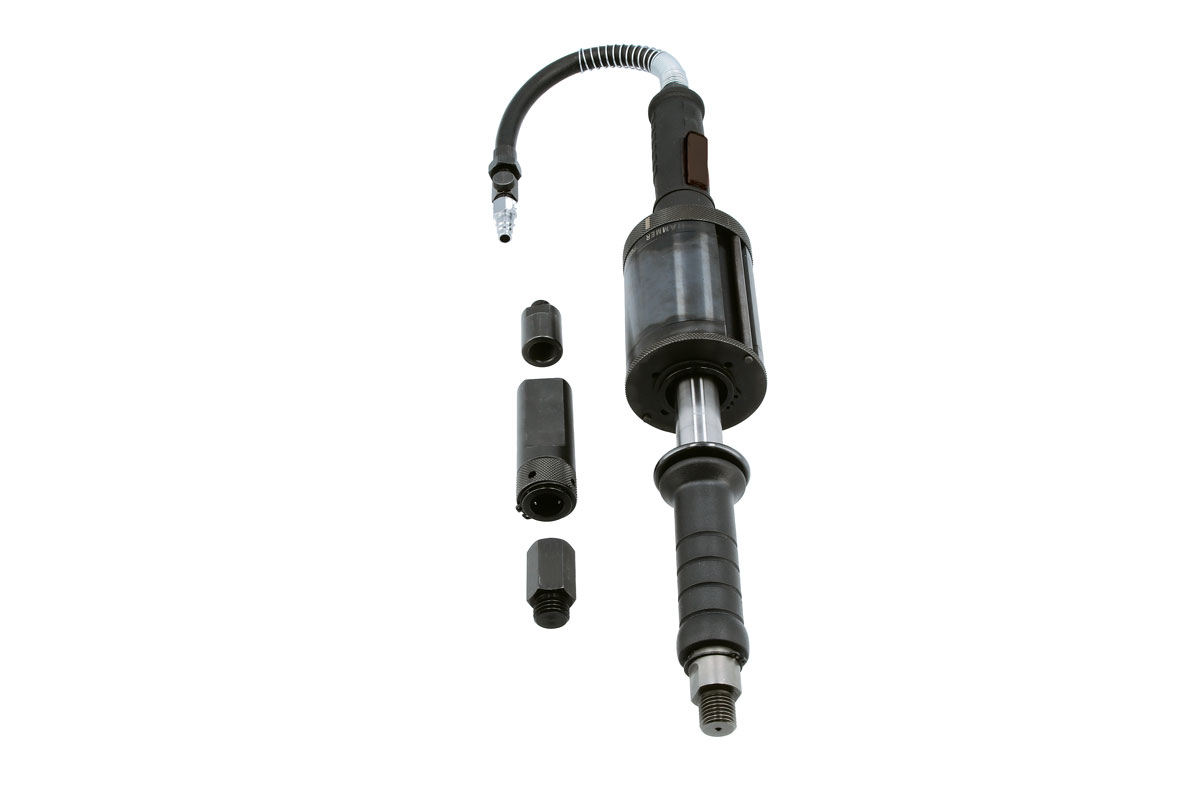

  • Main tool thread M18 x 2.0mm. Also supplied with 2x thread adaptors (M14 x 1.5mm & 5/8" UNF) & air chisel adaptor.
  • BPM: Pulling: 1,300, equal to 4,000kg of force; Hammer: 1,300, equal to 4,000kg of force.
  • Noise level: 98dB. Air consumption: 36CFM (approx.). Working pressure: 120PSI.
  • Air inlet: 1/4" BSP (use with minimum hose size 3/8"). Recommended air inlet pressure: 120PSI.
  • Weight: 4.9Kg. Length: 516mm.
List Price: £450.00 ex VAT £540.00 inc VAT

Ein druckluftbetriebener Gleithammer. Laser 9210 verwendet Standarddruckluft zum Herausziehen (Ziehen) oder Einsetzen (Drücken), indem es das Hammergewicht automatisch in die eine oder andere Richtung zwingt. Das Werkzeug verwendet Drucklufthammertechnik, ist aber um eine zentrale Welle herum angeordnet. Bei einem Standard-Gleithammer wird die Schlagkraft rein durch den Impuls des gleitenden Gewichts erzeugt, wenn es gegen die Aufprallfläche schlägt. Dieser plötzliche Anschlag überträgt erhebliche Stoßkräfte direkt durch den Griff und das Gewicht in die Hände und Arme des Benutzers. Im Laufe der Zeit oder bei häufigem Gebrauch kann diese sich wiederholende Schlagbelastung zu Beschwerden, Ermüdung und sogar Verletzungen wie dem Weißfinger- oder dem Karpaltunnelsyndrom führen. Die Verwendung eines luftbetriebenen Gleithammers reduziert dieses Problem erheblich.

  • Hauptwerkzeuggewinde M18 x 2,0 mm. Wird mit 4 Gewindeadaptern (M14 x 1,5 mm, M20 x 2,5 mm, M20 x 1,5 mm, 5/8" UNF) und Druckluftmeißel-Adapter geliefert.
  • Schläge/Minute: Ziehen: 1300, entspricht 4000 kg Kraft; Hammer: 1300, entspricht 4000 kg Kraft.
  • Geräuschpegel: 98 dB. Luftverbrauch: ca. 61.16 m³/min. Betriebsdruck: 8,27 bar.
  • Druckluftanschluss: 1/4" BSP (Verwendung mit minimaler Schlauchgröße 3/8"). Empfohlener Eingangsluftdruck: 8,27 bar.
  • Gewicht: 4,9 kg. Länge: 516 mm.
List Price: £450.00 ex VAT £540.00 inc VAT

Marteau à inertie à air comprimé d'atelier. Le Laser 9210 utilise l'air comprimé d'atelier pour extraire (tirer) ou insérer (pousser) en forçant automatiquement le poids du marteau dans un sens ou dans l'autre. Utilise une technologie de marteau pneumatique, mais autour d'un arbre central. Dans un marteau à inertie standard, la force qui entraîne l'impact est générée uniquement par l'élan du poids coulissant lorsqu'il s'écrase sur la surface d'impact. Cet arrêt soudain transmet un choc important directement à travers la poignée et le poids dans les mains et les bras de l'utilisateur. Au fil du temps, ou en cas d'utilisation fréquente, cet impact répétitif peut entraîner une gêne, de la fatigue, voire des troubles tels que le syndrome de Raynaud ou le syndrome du canal carpien. L'utilisation d'un marteau à inertie pneumatique réduit considérablement ce problème.

  • Filetage d'outil principal M18 x 2,0 mm. Fourni également avec 4 adaptateurs filetés (M14 x 1,5 mm, M20 x 2,5 mm, M20 x 1,5 mm, UNF 5/8") et un adaptateur pour burin pneumatique.
  • BPM : Traction : 1 300, ce qui équivaut à une force de 4 000 kg ; Marteau : 1 300, ce qui équivaut à une force de 4 000 kg .
  • Niveau sonore : 98 dB. Consommation d'air : 61.16 m3/min. (36 CFM) (environ). Pression de service : 120 PSI.
  • Admission d'air : 1/4" BSP (à utiliser avec un flexible d'au moins 3/8"). Pression d'admission d'air recommandée : 120 PSI.
  • Poids : 4,9 kg. Longueur : 516 mm.
List Price: £450.00 ex VAT £540.00 inc VAT
 Buy Locally
Buy Online
Press Release Downloads
Useful Downloads

Press Release

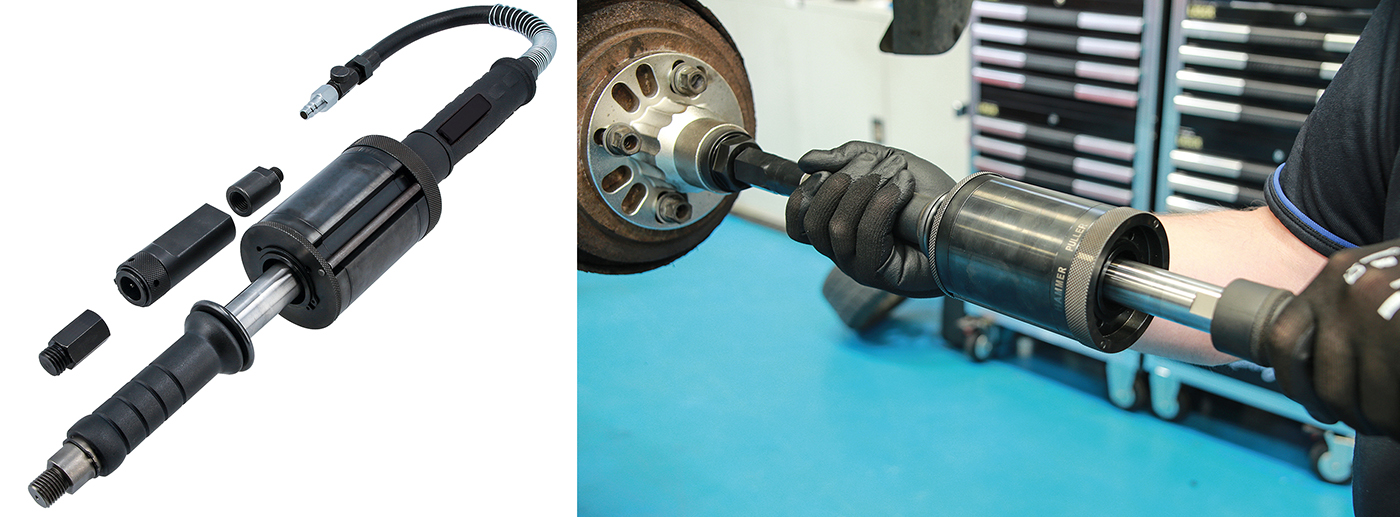

Air-powered, bi-directional, brutally effective — new slide hammer from Laser Tools
Air-powered, bi-directional, brutally effective — new slide hammer from Laser Tools

New from Laser Tools is this Bi-Directional Pneumatic Air/Slide Hammer (part number 9210), a workshop-grade, air-powered slide hammer that brings controlled, high-force extraction and insertion to demanding service work — while dramatically reducing the physical shock and operator fatigue associated with traditional momentum slide hammers.

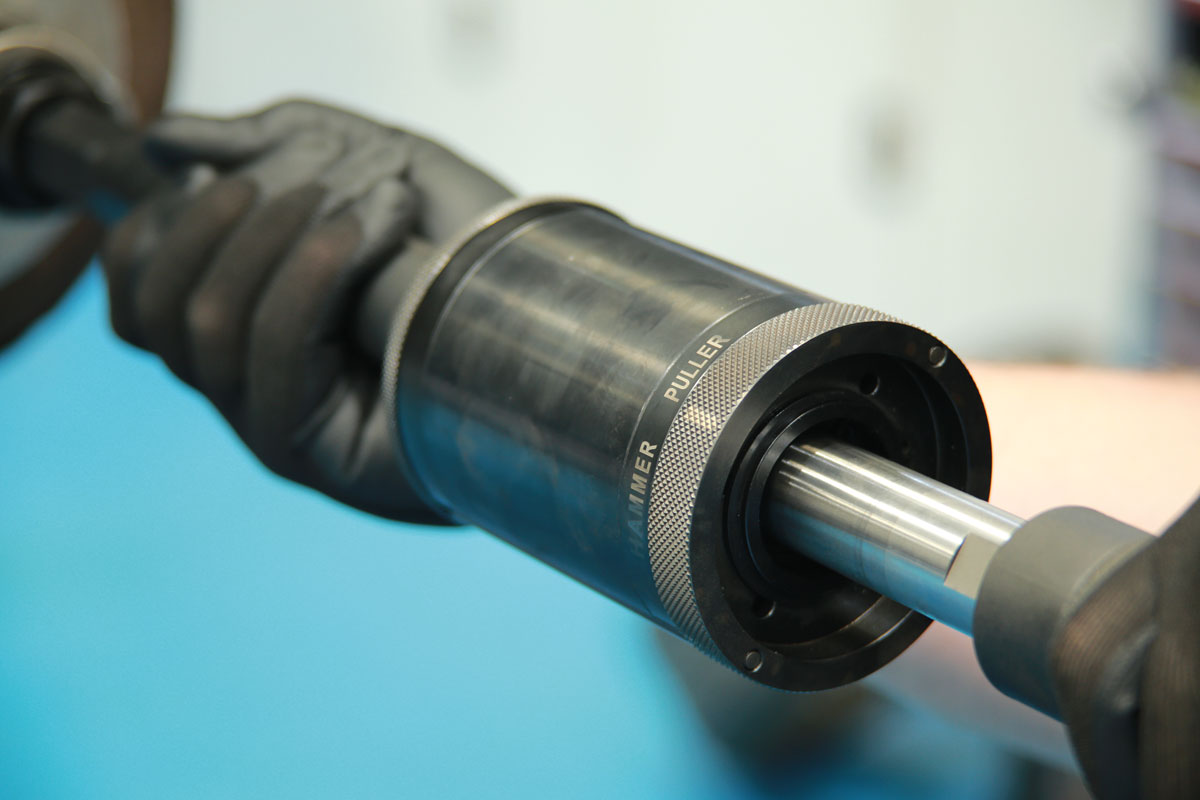

Traditional slide hammers rely on a heavy weight slammed by hand down a shaft to generate impact. That repeated blunt force is effective — but it transmits violent shock into the user’s hands and arms, increasing the risk of fatigue and vibration-related injuries over time. The 9210 replaces that repeated manual strike with an air-driven action that automatically drives the hammer weight in either the pull or push direction, delivering consistent impact without repeated shoulder-bruising blows.



Why workshops will want one:
  • Bi-directional action (pull and push): Use the same tool to extract or install components — ideal for hubs, bearings, seals, studs and stubborn suspension or driveline parts.
  • Reduced operator strain: Pneumatic drive removes the need for repeated manual slamming, cutting hand-arm vibration and operator fatigue for safer, longer shifts.
  • Huge bite of force: At 1,300 BPM in pull or hammer modes, the 9210 delivers an impact equivalent to 4,000 kg of force, making light work of seized or corroded assemblies.
  • Robust adaptability: Main tool thread M18 x 2.0 mm, plus two thread adaptors (M14 x 1.5 mm & 5/8" UNF) and an air chisel adaptor for broader workshop applications.
  • Fast, repeatable results: Air-powered impacts are consistent and controllable — less risk of damage to components versus uncontrolled manual blows.

Typical applications:

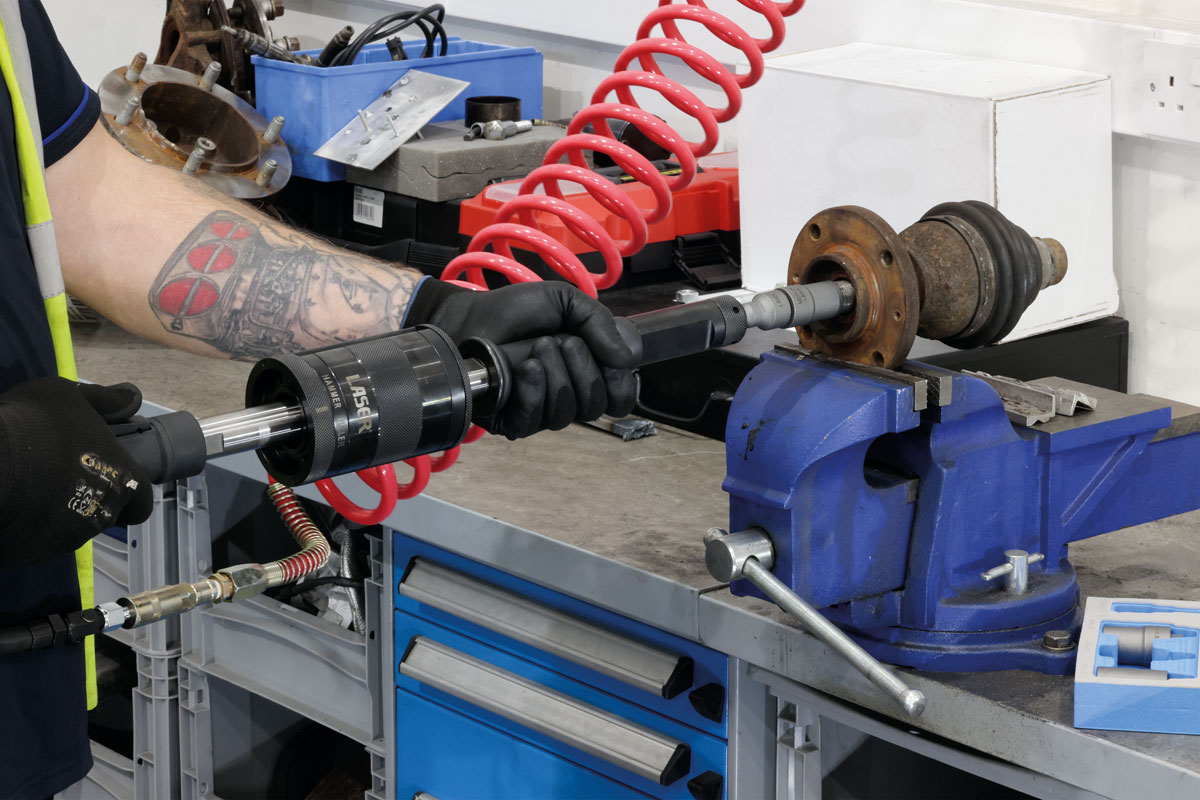

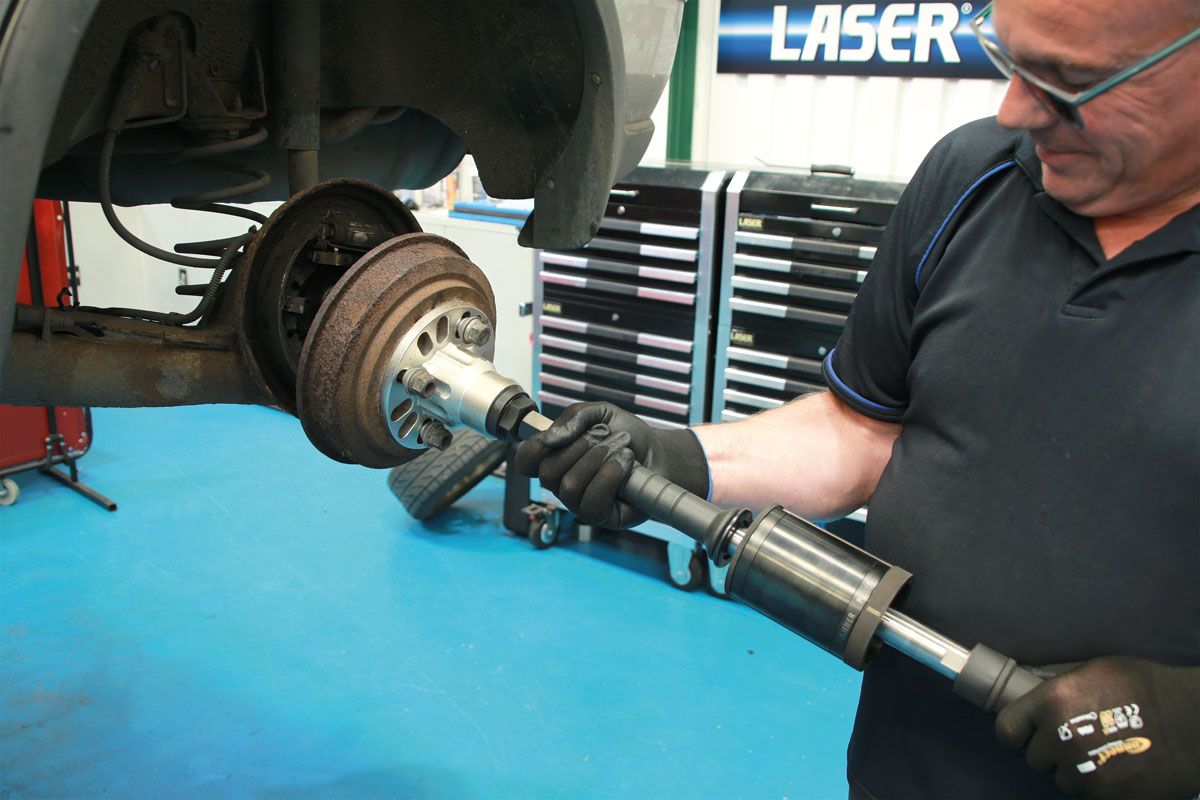

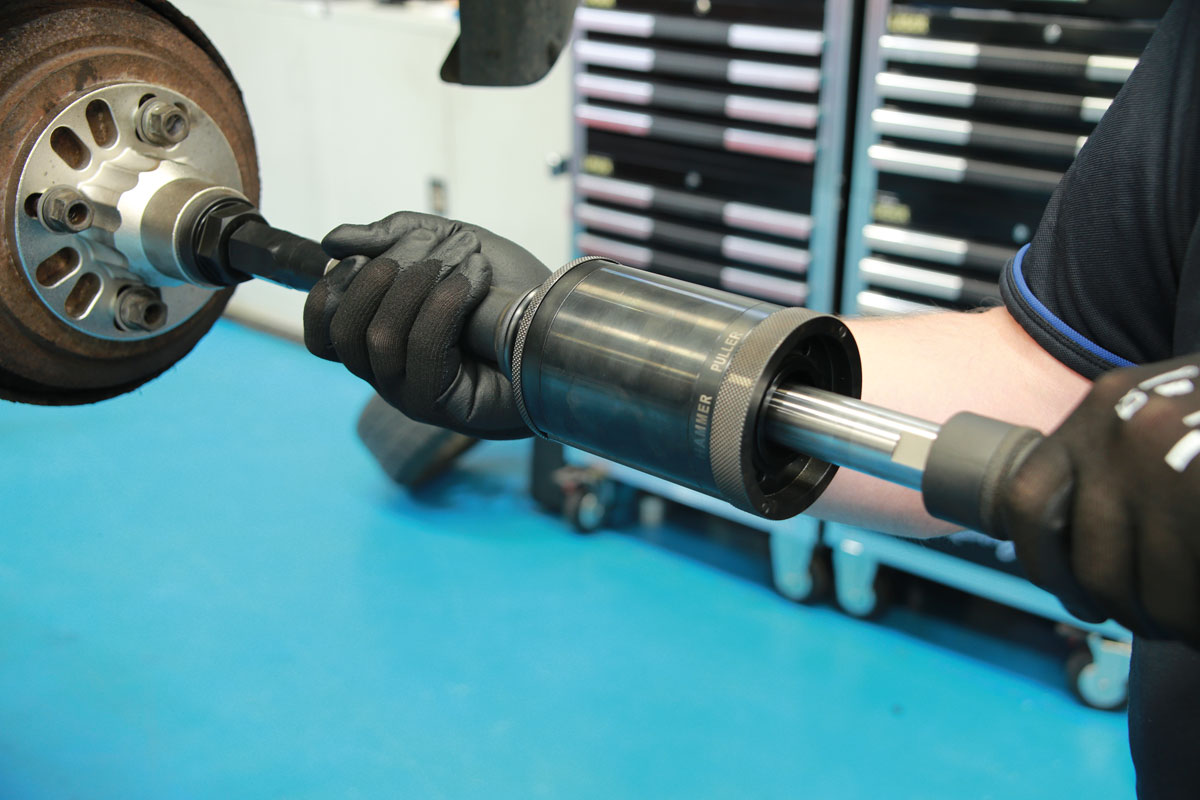

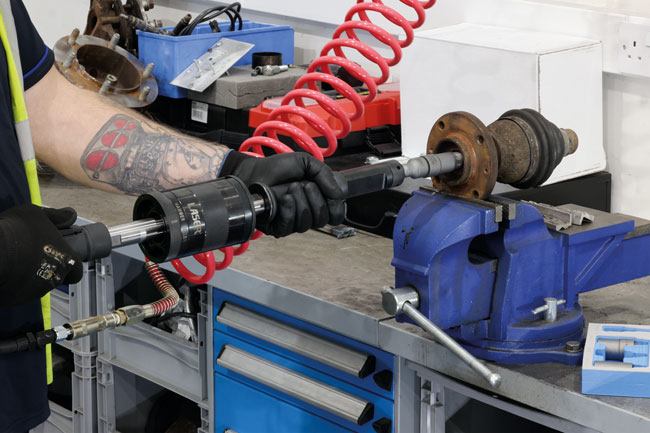

  • Removing and installing wheel hub components, bearing carriers and seals.
  • Extracting studs, bushings and pressed fittings.
  • Controlled driving of sleeves, collars and sleeves in assembly/disassembly tasks.
  • Use where conventional slide hammers are too physically demanding or risk damage to the operator.

For technicians who demand hard-hitting extraction power without the repeated blows and bruising of a conventional slide hammer, the Laser 9210 Bi-Directional Pneumatic Air/Slide Hammer delivers controlled, repeatable force and reduced operator fatigue — a real upgrade for busy workshops and mobile technicians.

Available now for purchase from your Laser Tools stockist and online retailers.
