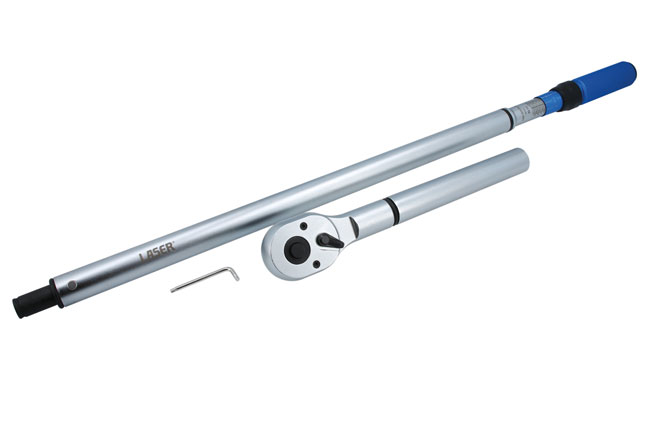

8958 Torque Wrench 3/4"D 160-800Nm

3/4" Drive Ratchet mechanism with 24 teeth Ratchet mechanism with 48 teeth Clockwise Torque Calibration Certificate

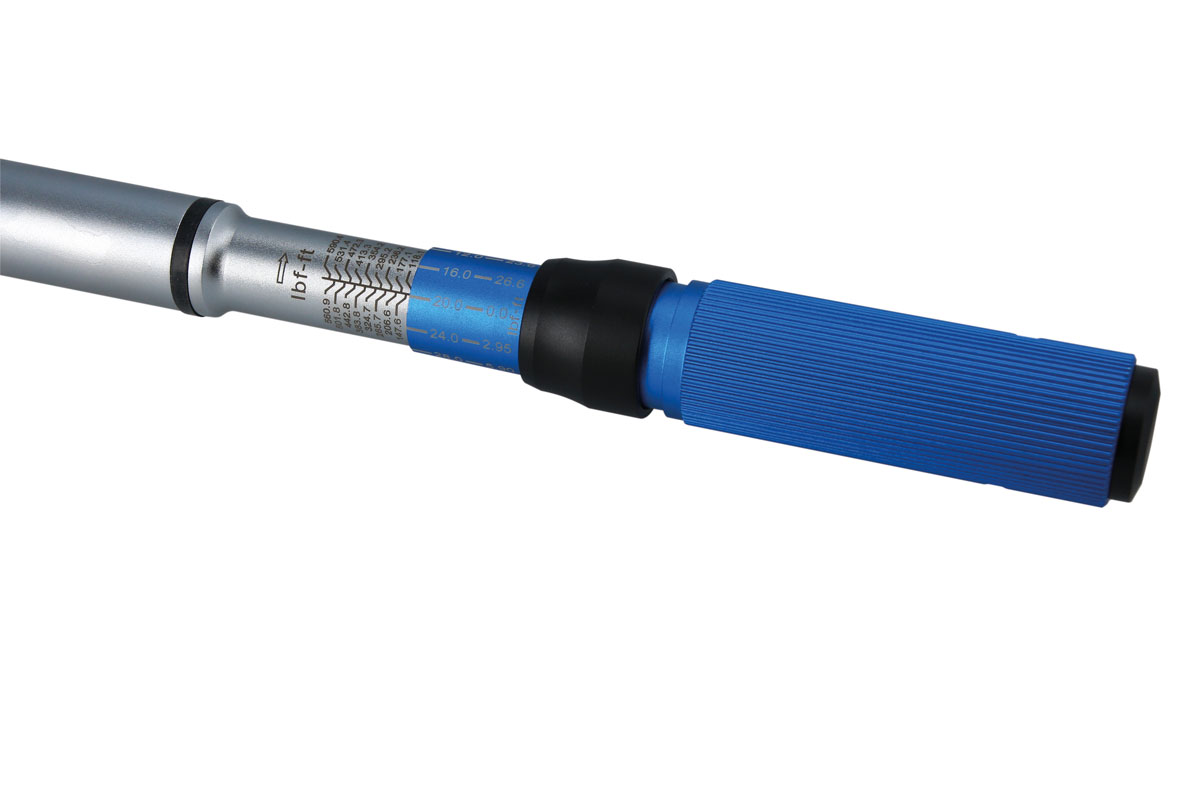

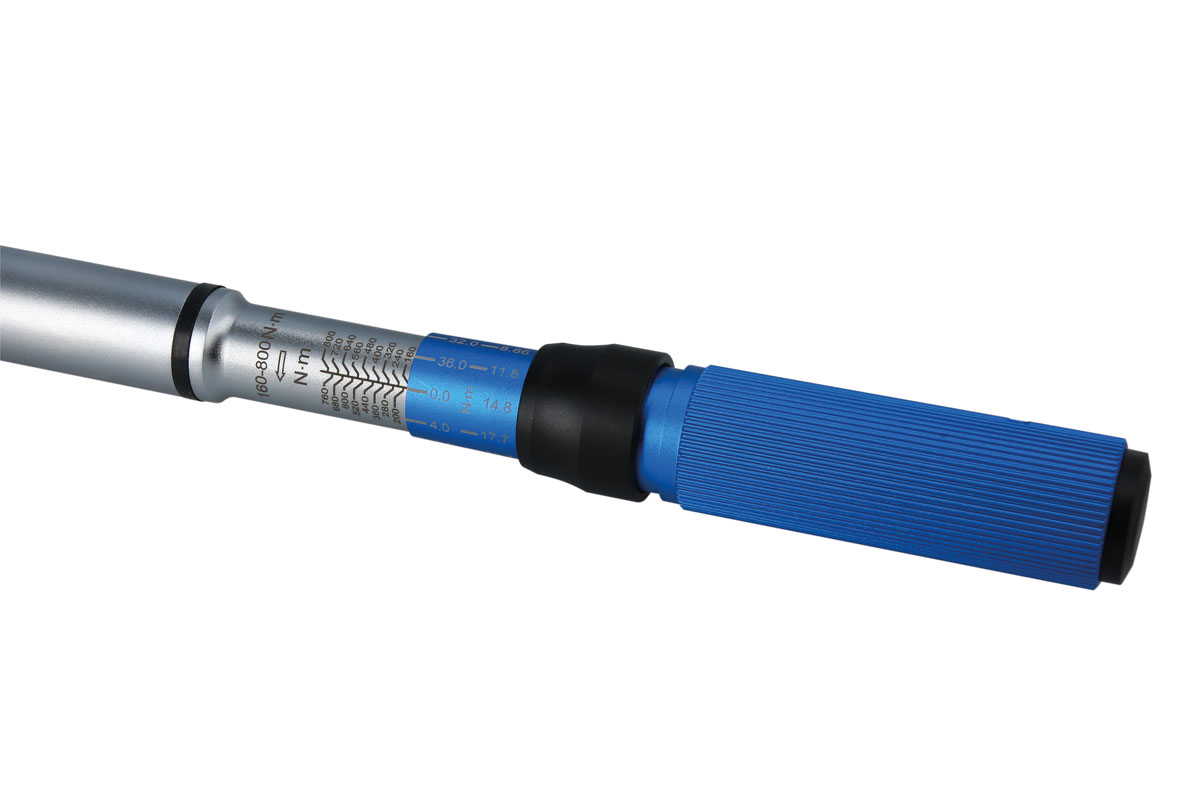

A heavy-duty 3/4"D click type torque wrench, 1220mm in length, with a range of 160 to 800Nm (118.1 - 590.4lb-ft), suitable for a wide variety of automotive and engineering applications. It features an easy to read scale, which is adjustable in 4Nm increments, together with a large diameter knurled grip handle and a spring-loaded locking collar.

  • Range: 160 - 800Nm (118.1 - 590.4lb-ft); tolerance ±3%.

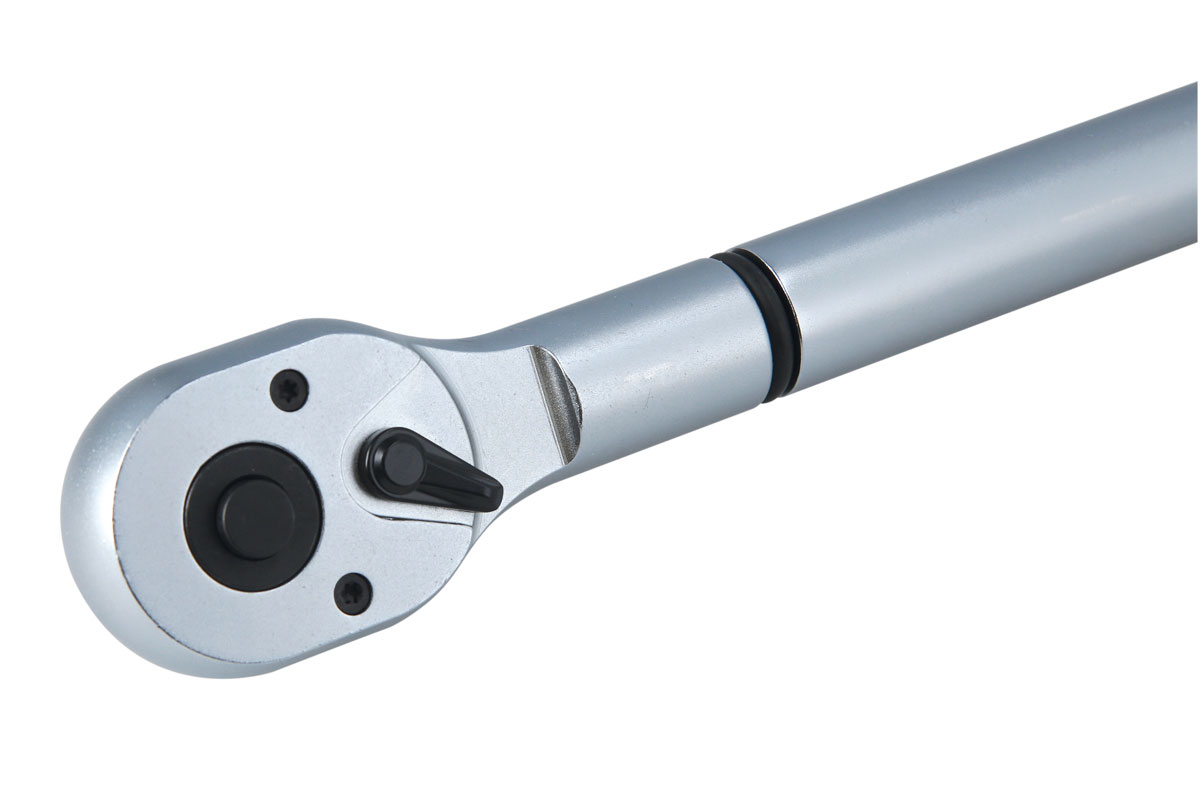

  • 24 teeth ratchet mechanism; 3/4"D x 1220mm long.

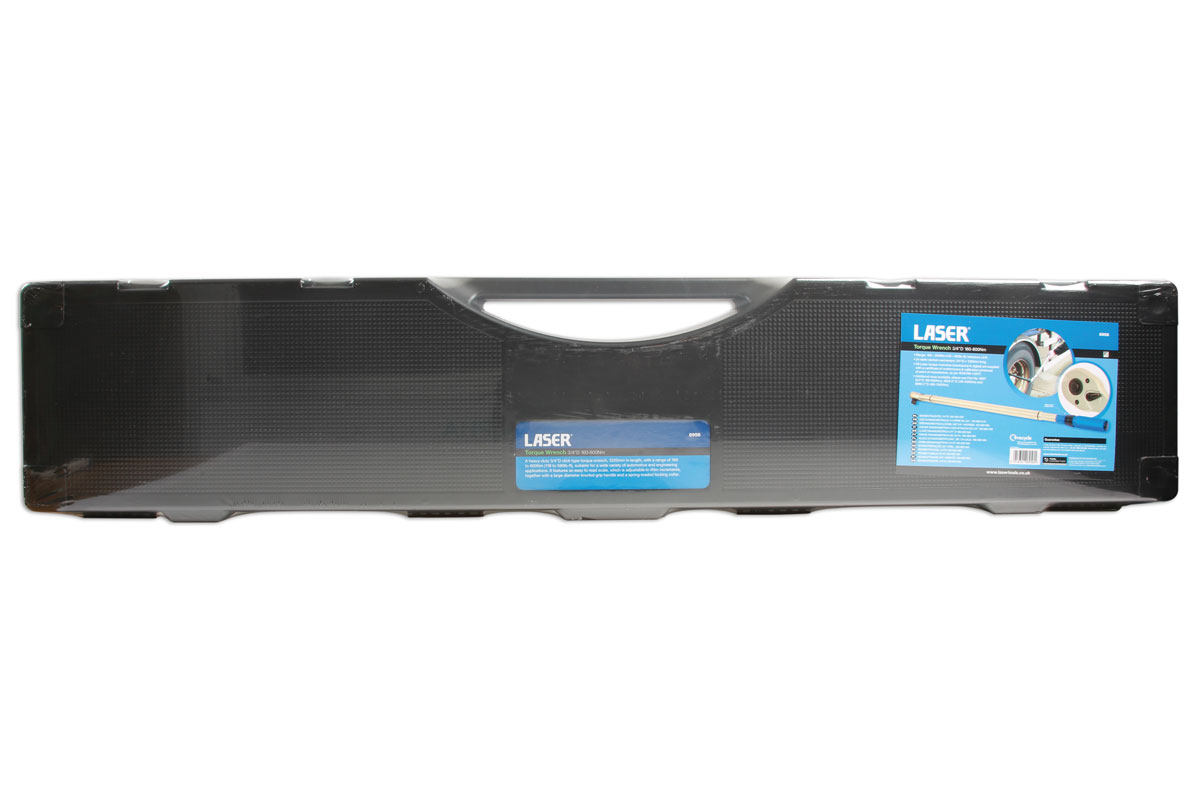

  • Supplied in a blow mould case for storage.
  • All Laser torque wrenches (mechanical & digital) are supplied with a certificate of conformance & calibration produced at point of manufacture, as per ISO6789-1:2017.
  • Additional sizes available, please see Part No. 8957 (3/4"D 100-600Nm), 8959 (1"D 240-1200Nm), 8960 (1"D 480-1500Nm).
TSP: £469.90 ex VAT £563.88 inc VAT

Hochbelastbarer Klick-Drehmomentschlüssel mit 3/4"-Antrieb, 1210 mm lang, mit einem Bereich von 160 bis 800 Nm, geeignet für eine Vielzahl von Anwendungen im Automobil- und Maschinenbau. Mit leicht ablesbarer Skala, in 0,25-Nm-Schritten einstellbar, sowie einem gerändelten Griff mit großem Durchmesser und einem federbelasteten Verschlussring.

  • Einsatzbereich: 160-800 Nm; Toleranz ±3 %.
  • Ratschenmechanismus mit 24 Zähnen; 3/4"-Antrieb, 1210 mm lang.
  • Lieferung in einem Hartschalenkoffer zur Aufbewahrung.
  • Alle Laser-Drehmomentschlüssel (mechanisch und digital) werden mit am Herstellungsort ausgestellter Konformitäts- und Kalibrierungsbescheinigung nach ISO6789-1:2017 geliefert.
  • Weitere Größen erhältlich, siehe Teile-Nr. 8957 (3/4"-Antrieb, 100-600 Nm), 8959 (1"-Antrieb, 400-1200 Nm), 8960 (1"-Antrieb, 480-1500 Nm).
TSP: £469.90 ex VAT £563.88 inc VAT

Clé dynamométrique à cliquet à carré de 3/4", à usage intensif, 1 210 mm de long et plage de couple de 160 à 800 N.m, convenant à une grande variété d'applications automobiles et d'ingénierie. Elle est dotée d'une échelle facile à lire, réglable par incréments de 0,25 N.m, d'une poignée moletée de grand diamètre et d'un collier de verrouillage à ressort.

  • Plage : 160 - 800 N.m ; tolérance ±3 %.
  • Mécanisme à cliquet 24 dents ; carré de 3/4" x 1 210 mm de long.
  • Fournie dans un coffret de rangement moulé par soufflage.
  • Toutes les clés dynamométriques Laser (mécaniques et numériques) sont fournies avec un certificat de conformité et d'étalonnage produit au point de fabrication, conformément à la norme ISO 6789-1:2017.
  • D'autres tailles sont disponibles, voir les références 8957 (carré de 3/4", 100-600 N.m), 8959 (carré de 1", 400-1 200 N.m), 8960 (carré de 1", 480-1 500 N.m).
TSP: £469.90 ex VAT £563.88 inc VAT

Momentsleutel 3/4"D 160-800 Nm

  • Zware 3/4"D klikmomentsleutel, 1220 mm lang, met een bereik van 160 tot 800 Nm (118,1 tot 590,4 lb-ft), geschikt voor een brede waaier aan voertuig- en technische toepassingen. Voorzien van een gemakkelijk af te lezen schaalverdeling, die instelbaar is in stappen van 4 Nm, samen met een gekartelde hendel met grote diameter en een veerbelaste borgring.
  • Bereik: 160 - 800 Nm (118,1 - 590,4 lb-ft); tolerantie ± 3%.
  • Ratelmechanisme met 24 tanden; 3/4"D x 1220 mm lang.
  • Geleverd in een stevige kunststof opbergkoffer.
  • Alle momentsleutels (mechanisch en digitaal) van Laser worden geleverd met een certificaat van conformiteit en ijking, opgesteld in de productievestiging, volgens ISO6789-1:2017.
TSP: £469.90 ex VAT £563.88 inc VAT
3/4" Drive Ratchet mechanism with 24 teeth Ratchet mechanism with 48 teeth Clockwise Torque Calibration Certificate
 Buy Locally

Useful Downloads

Press Release
Four new heavy-duty torque wrenches from Laser Tools — designed for high-torque applications

Laser Tools introduces a new range of heavy-duty, click-type torque wrenches, designed for professional automotive and engineering applications. Two 3/4" drive and two 1" drive versions are available, all featuring a strong 24-tooth ratchet mechanism and an easy-to-read scale, making them ideal for heavy-duty tasks that require accuracy and reliability. The large knurled grip handle and spring-loaded locking collar ensure secure operation and easy adjustment.

The 8957 3/4" drive model is 1012mm long and offers a torque range of 100 to 600Nm (73.8 - 442.5 lb-ft), with precise adjustment in 0.25Nm increments.

8958 is also a 3/4" drive model, this time 1220mm long with a torque range of 160 to 800Nm (118 – 590 lb-ft), adjustable in 4Nm increments.

The extra-heavy-duty 1" drive models sport two-piece handles to get the required extra leverage. The 8959 is 1827mm long and offers a torque range of 240 to 1200Nm (177 to 885lb-ft), this time adjustable in 6Nm increments. The 8960 model is also 1827mm long but the torque range is now an impressive 480 to 1500Nm (354 - 1106lb-ft), also adjustable in 6Nm increments.

All Laser Tools’ torque wrenches are supplied with a certificate of conformance and calibration produced at point of manufacture, as per ISO 6789-1:2017. These heavy-duty examples are supplied in a sturdy blow-moulded case for safe storage and transport.

With their robust construction and precision engineering, these torque wrenches from Laser Tools are essential for professionals who require reliable performance in demanding applications. They are available now for purchase from your Laser Tools stockist and online retailers.
