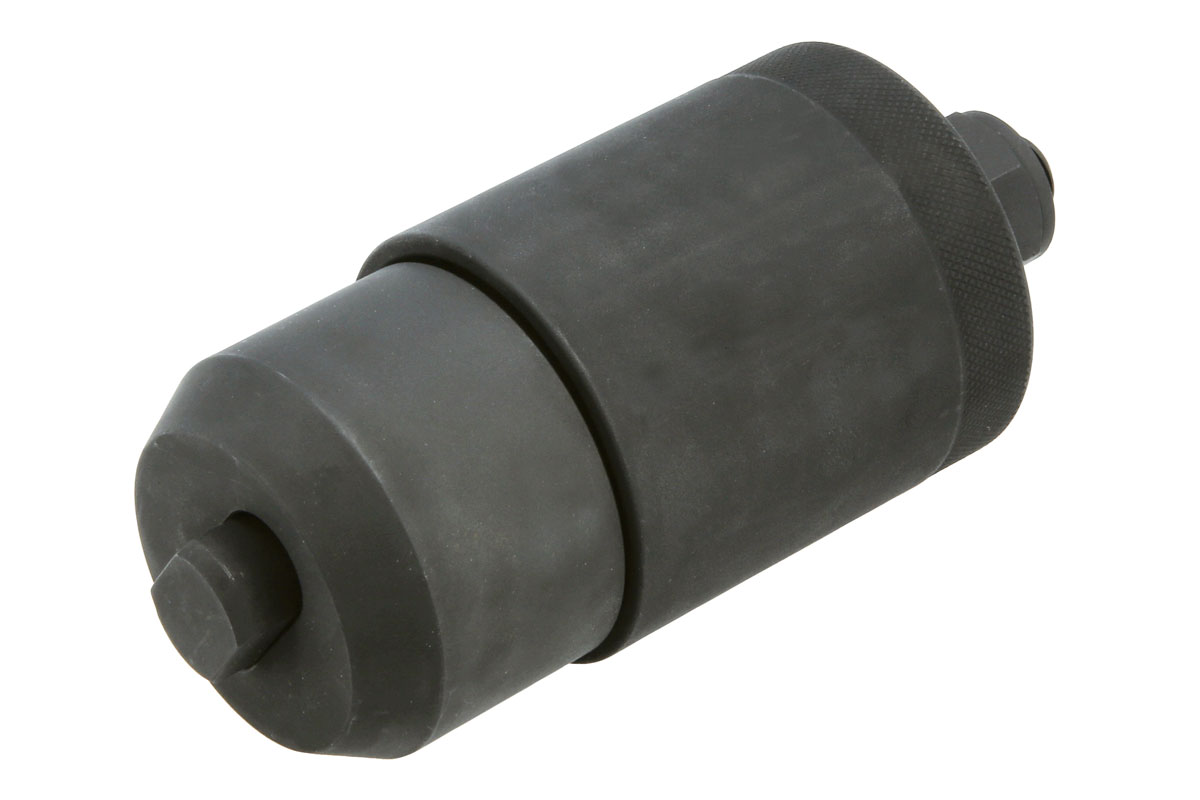

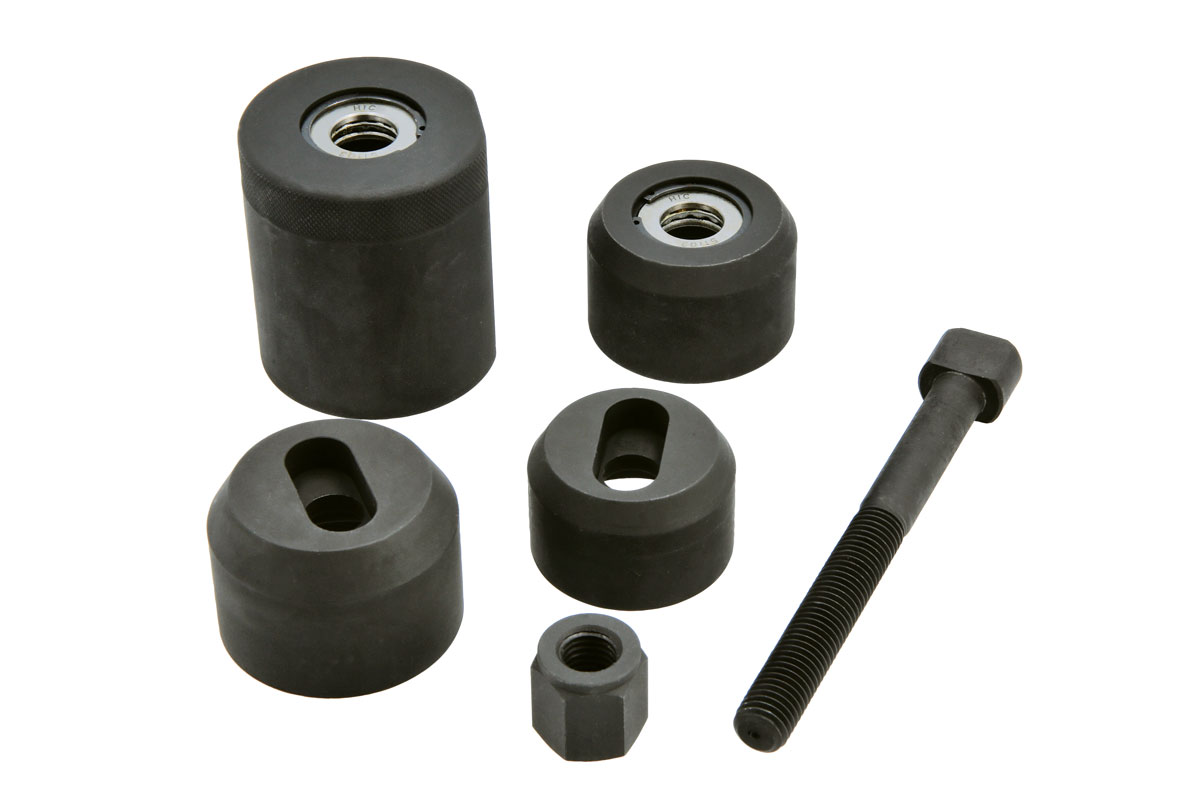

9209 Rear Hub Bush Tool Kit - for BMW 5, X5 & 7 Series
Part of a range of vehicle specific bush tools the Laser 9209 is designed to remove and fit the lower rear suspension hub rose joint (ball joint) on the BMW 5, X5, 6 & 7 Series, without having to remove suspension arms, subframes, etc from the vehicle. Designed to be used in-situ.
- Applications include: BMW 5 Series (1996 - 2017), X5 (1999 - 2015), 6 Series (2003 - 2011) & 7 series (1994 - 2015).
- Chassis codes covered: E38, E39, E53, E60, E61, E63, E64, E65, E66, E67, E70, F01, F02, F04, F07, F10, F11 & F18.
- Use with 24mm flexi-head ratchet ring spanner (Part No. 5753).
- Equivalent to OEM: 334191, 334192, 334193, 334194 & 333010.
- NOTE: Always lubricate the force screw with molybdenum disulphide grease before use.
List Price: £104.00 ex VAT £124.80 inc VAT
Als Teil eines Sortiments fahrzeugspezifischer Buchsenwerkzeuge ist Laser 9209 zum Aus- und Einbau des unteren hinteren Aufhängungsgelenkkopfs (Kugelgelenks) bei den BMW-Baureihen 5, X5, 6 und 7 konzipiert, ohne dass Fahrwerkslenker, Hilfsrahmen usw. vom Fahrzeug entfernen werden müssen. Für die Verwendung am Einsatzort.
- Einsatzmöglichkeiten u. a.: BMW 5er (1996-2017), X5 (1999-2015), 6er (2003-2011) und 7er (1994-2015).
- Abgedeckte Fahrwerkcodes: E38, E39, E53, E60, E61, E63, E64, E65, E66, E67, E70, F01, FO2, F04, F07, F10, F11 und F18.
- Verwendung mit 24-mm-Flexikopf-Ratschenringschlüssel (Teile-Nr. 5753).
- Entspricht OEM: 334191, 334192, 334193, 334194 und 333010.
- HINWEIS: Druckschraube vor Gebrauch immer mit Molybdändisulfidfett schmieren.
List Price: £104.00 ex VAT £124.80 inc VAT
Le Laser 9209 fait partie d'une gamme d'outils pour silent blocs spécifiques aux véhicules. Il est conçu pour retirer et installer le joint à rotule du moyeu inférieur de la suspension arrière sur les BMW des Séries 5, X5, 6 et 7, sans avoir à retirer les bras de suspension, les sous-châssis, etc. du véhicule. Conçu pour être utilisé in situ.
- Les applications comprennent : BMW Série 5 (1996 - 2017), X5 (1999 - 2015), Série 6 (2003 - 2011) et Série 7 (1994 - 2015).
- Codes de châssis concernés : E38, E39, E53, E60, E61, E63, E64, E65, E66, E67, E70, F01, FO2, F04, F07, F10, F11 et F18.
- À utiliser avec la clé polygonale à cliquet à tête flexible de 24 mm (réf. 5753).
- Équivalent des OEM : 334191, 334192, 334193, 334194 et 333010.
- REMARQUE : Toujours lubrifier la vis de force avec de la graisse au bisulfure de molybdène avant l'utilisation.
List Price: £104.00 ex VAT £124.80 inc VAT
Press Release
Fast, in situ hub bush removal and fitting for BMW 5, 6, 7 & X5 — no suspension arm or subframe dismantling
New to the Laser Tools’ comprehensive and trusted range of vehicle specific bush tools, the 9209 Rear Hub Bush Tool Kit, a vehicle-specific solution engineered so technicians can remove and fit the lower rear suspension hub (rose) joint on a range of BMW models without taking off suspension arms, subframes or carrying out heavy strip-down. Designed for in situ use, the 9209 saves time, reduces workshop downtime and avoids the additional labour, alignment work and risk associated with major disassembly.
Built to the kind of exacting standards technicians expect from Laser, the kit matches OEM form and function (see equivalents below) and is intended for professional commercial workshops, independent BMW specialists and experienced mobile technicians.
Why technicians will want the 9209:
- True time-saver: remove and install the rear hub rose joint while the assembly remains on the vehicle — big reduction in labour versus full disassembly.
- Vehicle-specific accuracy: purpose designed to suit the structural layout of the covered BMW chassis, making the job quicker and safer.
- Minimises follow-up work: avoiding removal of subframes and arms reduces the likelihood of needing re-alignment or additional refit work.
- Robust, repeatable: engineered for workshop use with durable components and correct fitment profiles to protect mating surfaces and new parts.
Applications & vehicle coverage:
- Vehicle ranges: BMW 5 Series, 6 Series, 7 Series, X5.
- Model years: Coverage includes many years across ranges; key applications include:
- 5 Series: 1996–2017
- X5: 1999–2015
- 6 Series: 2003–2011
- 7 Series: 1994–2015
- Chassis codes: E38, E39, E53, E60, E61, E63, E64, E65, E66, E67, E70, F01, F02, F04, F07, F10, F11 & F18.
- OEM equivalents: 334191, 334192, 334193, 334194 & 333010.
Fitters can approach hub rose joint replacement as a single, contained operation: position the tool, liberate the worn joint, press out and replace the hub bush/ball joint and reassemble — all while keeping the majority of the suspension in place. This greatly reduces turnaround on common rear suspension repairs and is particularly valuable in busy commercial workshops and dealer-level service bays.
Available now for purchase from your Laser Tools stockist and online retailers.
