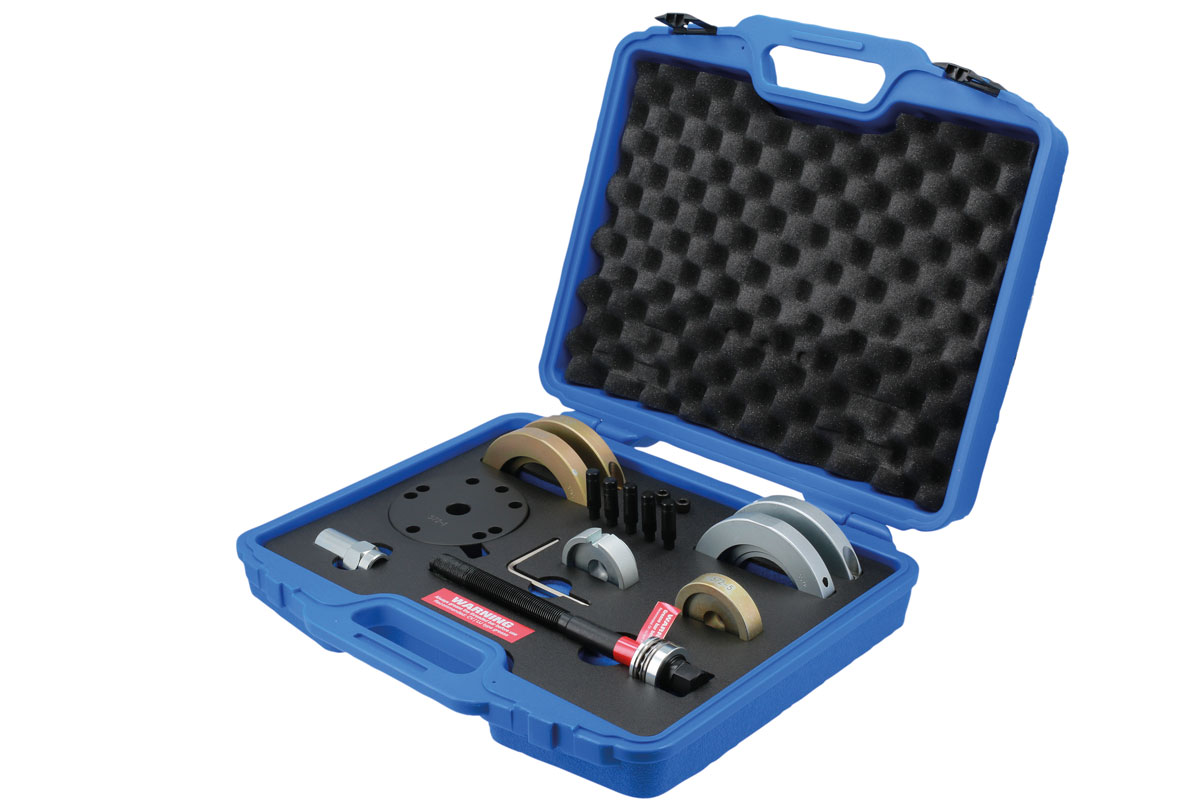

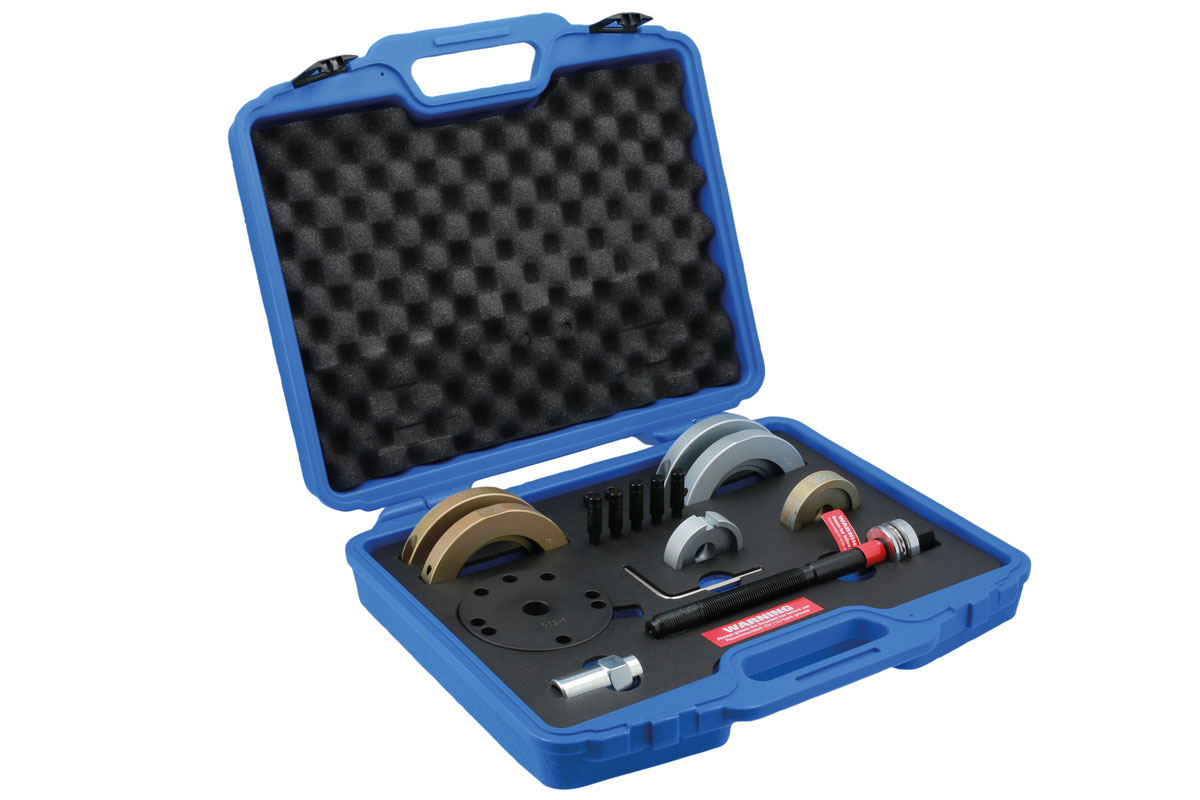

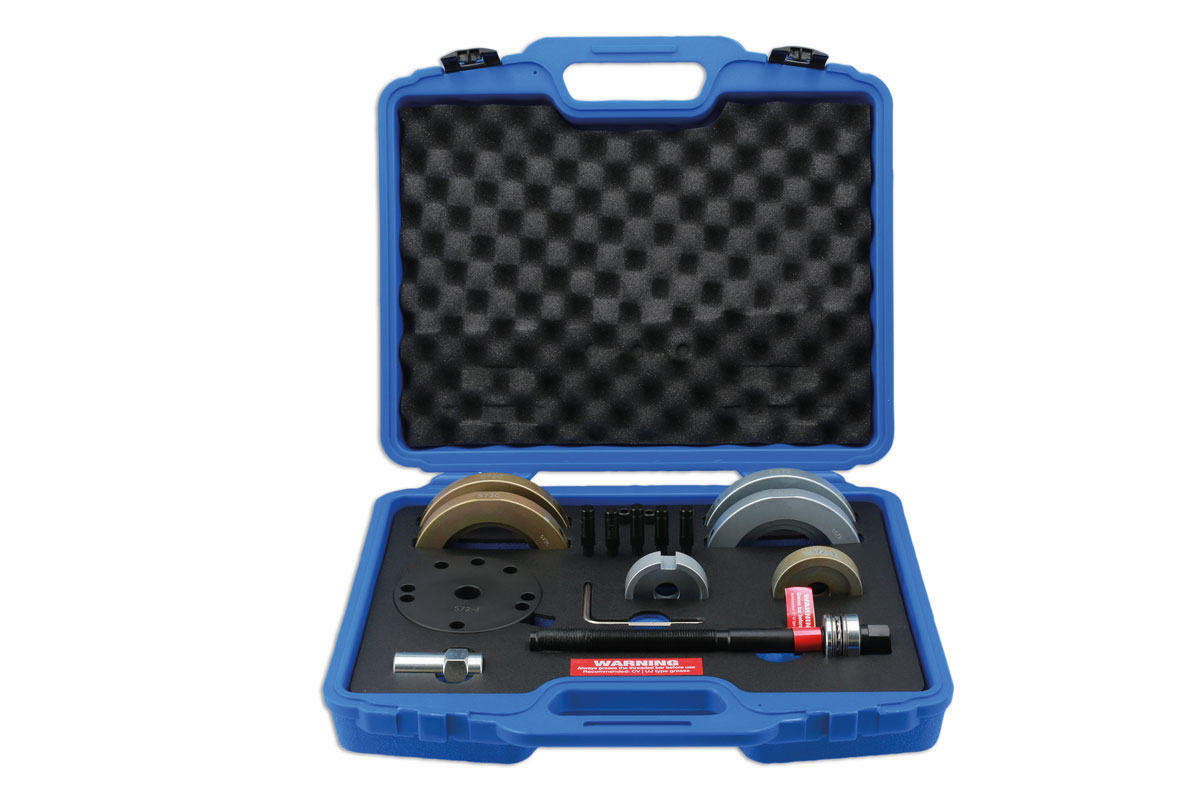

5473 GEN2 Wheel Bearing Kit 72mm - for VAG

IEC Item(s) need Lubrication Product Video available

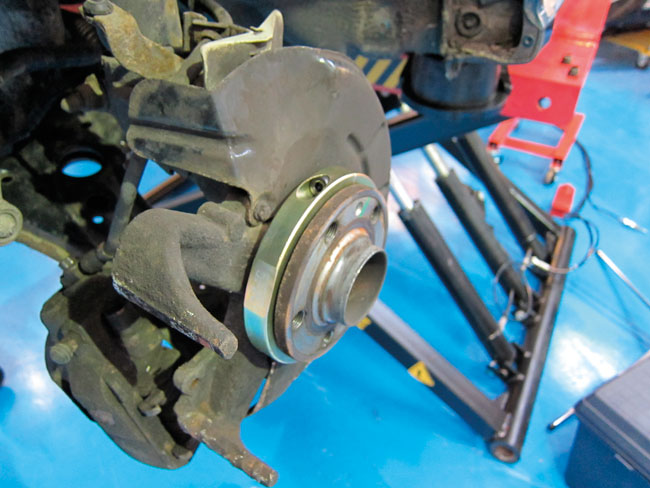

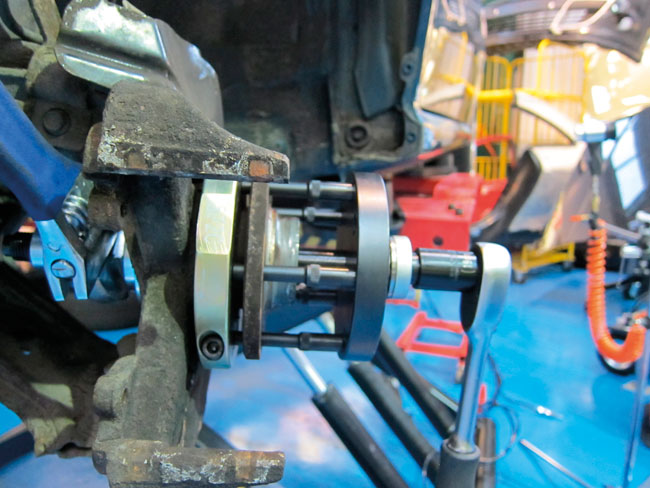

Generation II (GEN2) type wheel bearings consist of a combined bearing and drive flange (hub), which cannot be separated, therefore require special tools for both removal and fitting of new bearings. The Laser Tools range includes a number of individually sized kits, along with upgrade kits to allow for expansion of applications of different sized bearings without always having to purchase complete new kits for each bearing size - by using clamshells, force plates and pins, the tool ensures that the load of insertion is taken only on the outer race of the bearing. The kits are also designed to allow for extraction of the relevant bearing, without removing the ABS Sensor.

  • Applications (vehicles equipped with PAS): Audi A2; Seat Ibiza; Skoda Fabia and Roomster; Volkswagen Fox and Polo.

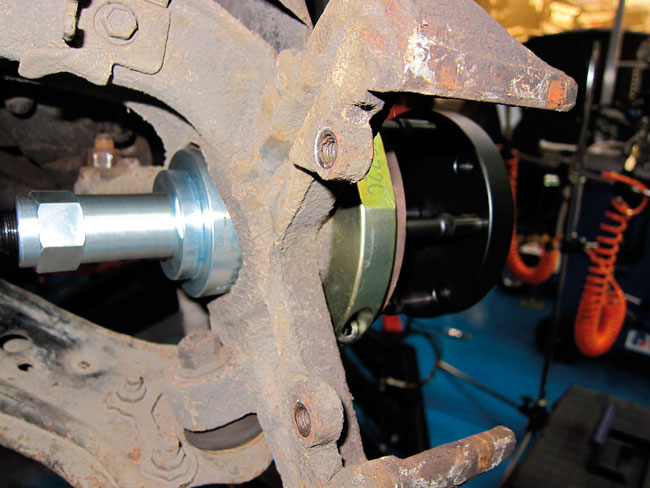

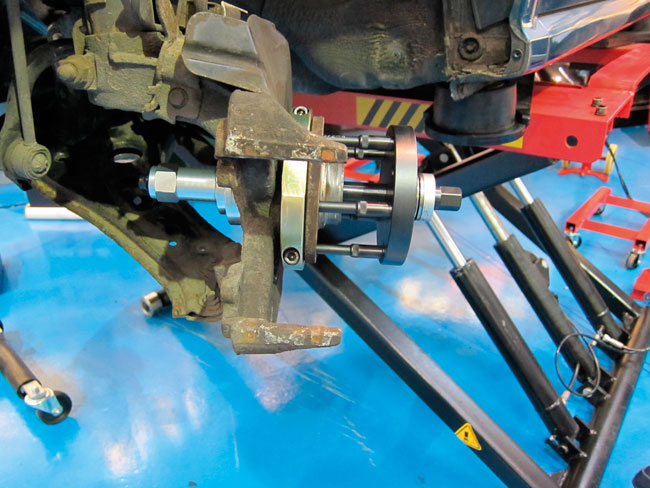

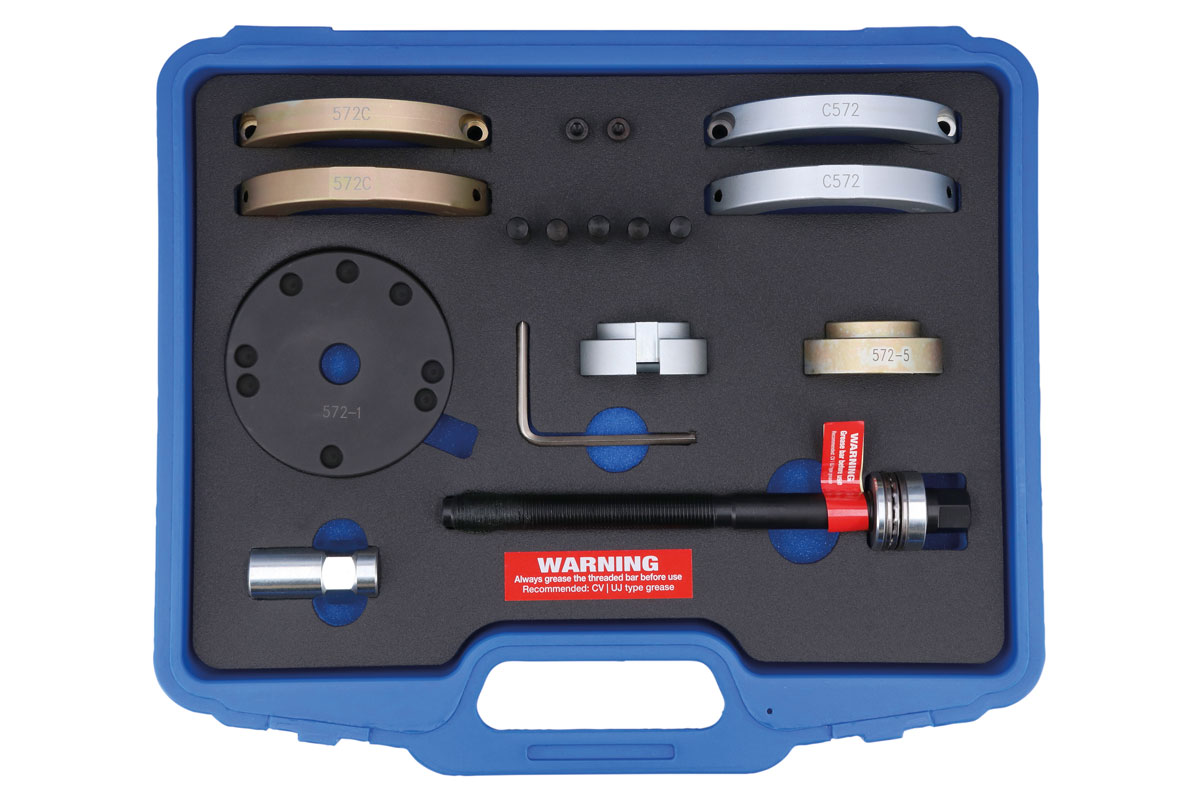

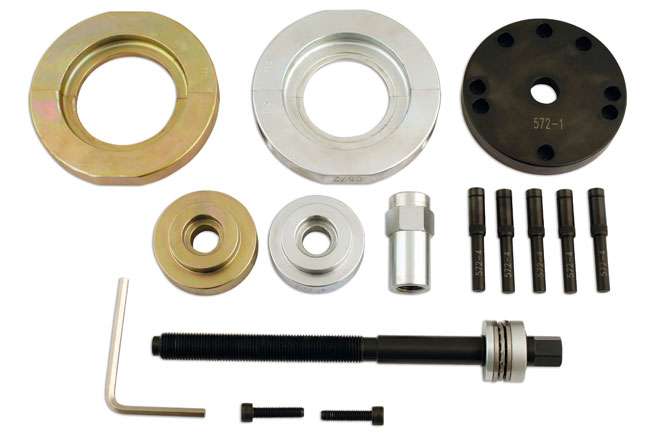

  • For removing and installing the wheel hubs and bearings on VAG models. The extraction adaptor (572-6) for GEN2 bearing kits has been designed to allow the extraction of the relevant bearings without removing the ABS sensor.
  • Suitable for 72mm diameter wheel bearings.
  • Replacement spares available - Force Screw (Part No. 0454), Pin (Part No. 0621) and Thrust Bearing (Part No. 0662).
  • IMPORTANT: ensure the threaded bar and thrust bearing are well lubricated with molybdenum disulphide grease before use.
TSP: £512.60 ex VAT £615.12 inc VAT
IEC Item(s) need Lubrication Product Video available
 Buy Locally

Press Release
Generation 2 Wheel Bearing Installer / Remover Kit

This new range of kits for Generation 2 wheel bearings makes light work of removing or installing this type of bearing, which cannot be separated from the drive flange assembly. Should a Generation 2 bearing need replacing, the whole drive flange assembly must be removed and a new assembly fitted.

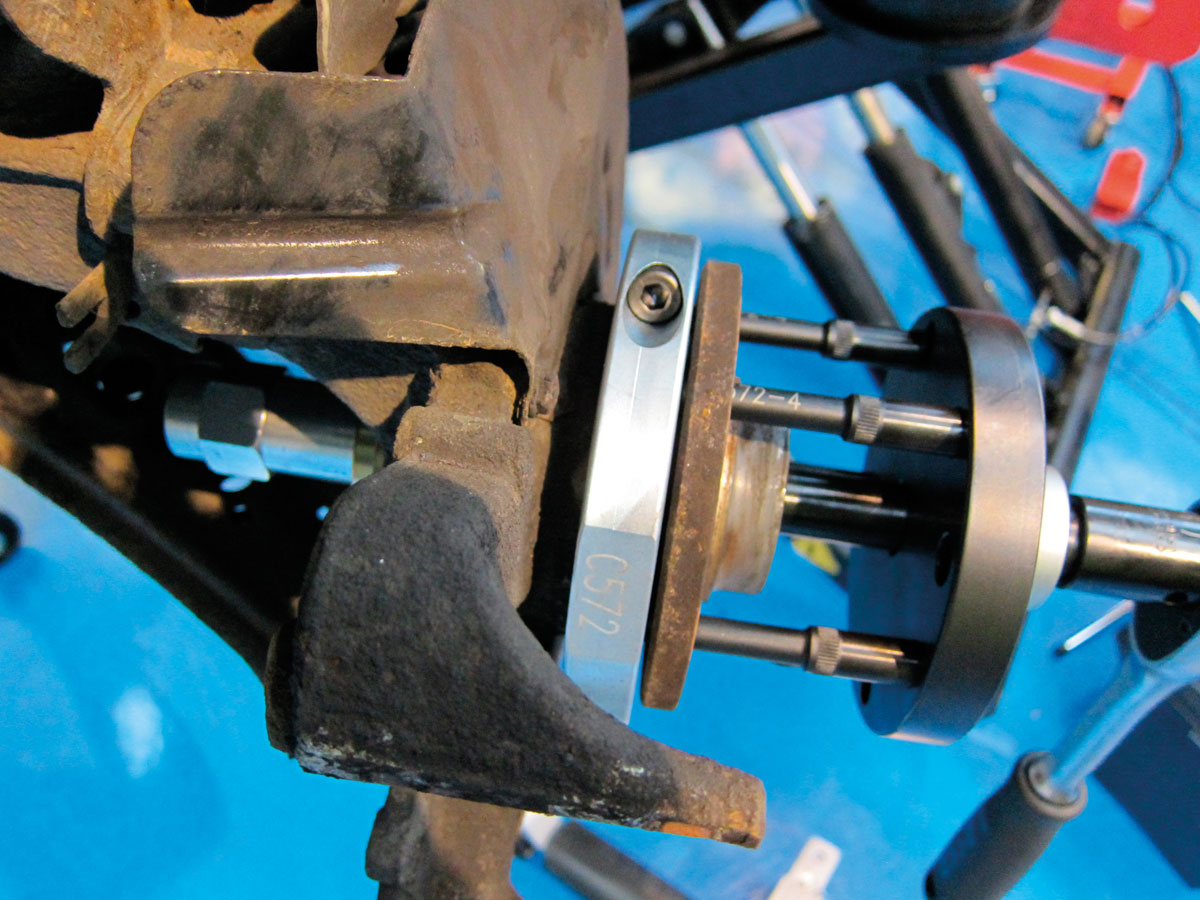

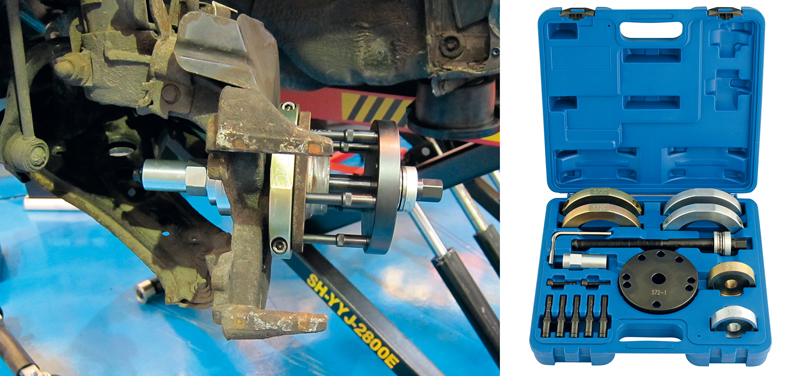

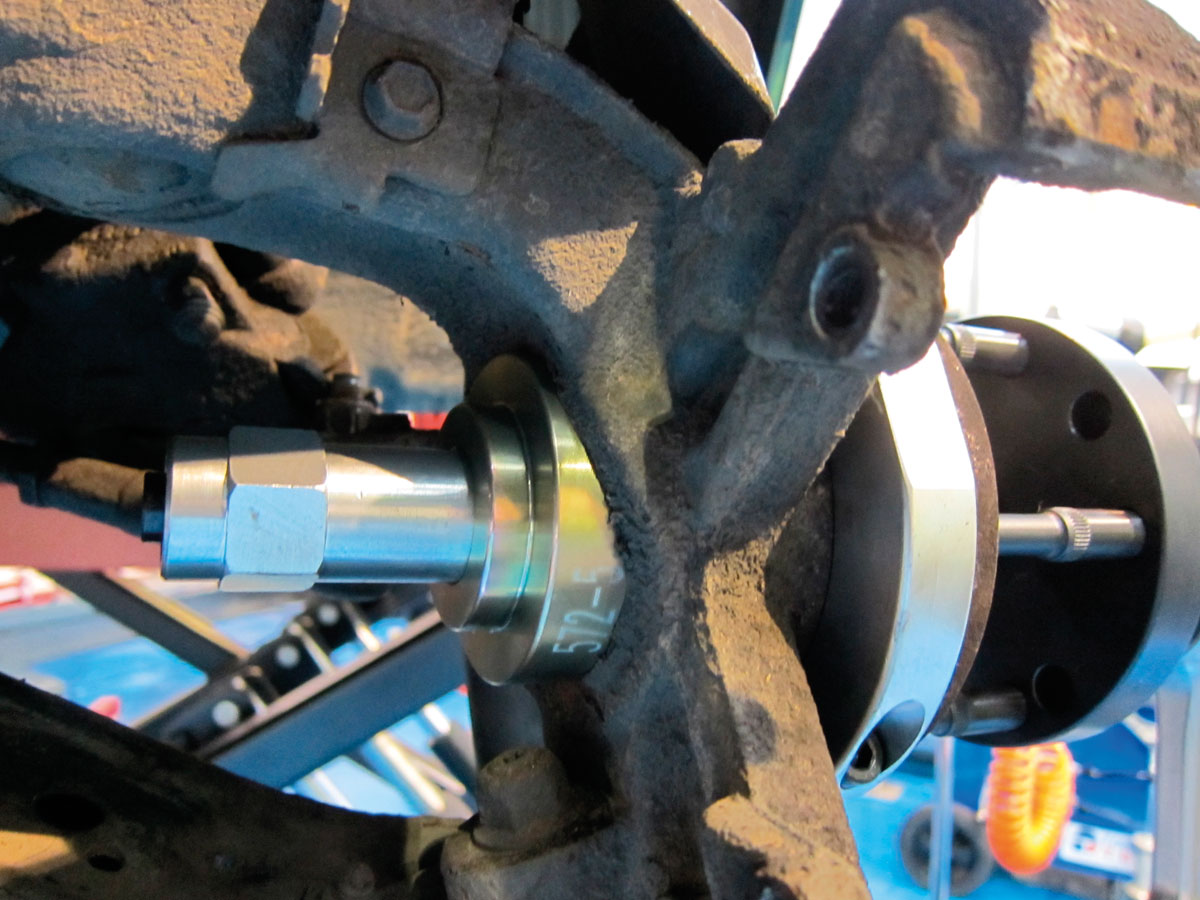

By using clamp collars and force pegs the tool ensures that the loads of insertion are taken only on the outer race of the bearing and the innovative design of the kit ensures that the job is completed quickly and easily. Have a look at the product video on the Tool Connection’s Youtube channel: http://youtu.be/3SsbSYmngZY to see just how straightforward this job has become.

The range currently includes part no: 5473 (72mm for VAG), 5568 ( 78mm for Ford Focus II & C-Max), 5576 (62 & 66mm for VAG), 5582, (85mm for VAG), and the 5587 VAG Master Kit (62, 66, 72, 85mm).

For further details, please contact the Marketing Department: 01926 818196.

Spares/Consumable Spares
We have the following spare parts/accessories available for this product.
Description Spare Item No.
GEN2 Force Nut 0108
GEN2 Force Plate & Pins - 62, 66, 72mm 5943
GEN2 Main Force Screw 0454
GEN2 Thrust Bearing 0662
