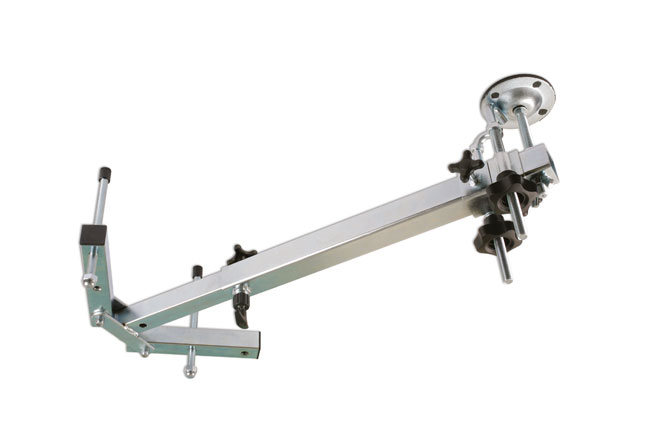

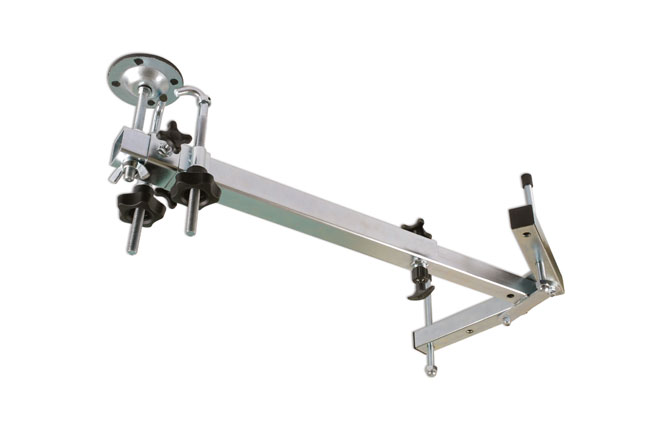

5750 Engine/Gearbox Support

Product Video available

Designed for transverse-engined vehicles, the frame will support the engine and/or gearbox when carrying out repair operations like clutch or gearbox removal, DMF change, removing and replacing engine and gearbox mounts, for cam belt replacement, etc.

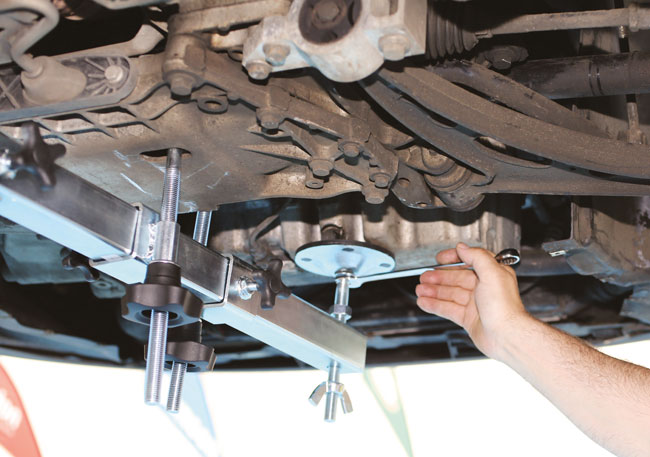

  • With car on ramp, engine/gearbox position and height can be adjusted from underneath.
  • Once support frame is secured in position, vehicle ramp can be moved up and down.
  • Length of frame, position of thrust pins, mounting support hooks and main support pad is fully adjustable to suit many applications.
  • Frame length: 600mm - 930mm (fully extended). Maximum width of thrust pins: 300mm (position 1), 500mm (position 2). Maximum load 400kg.
TSP: £366.50 ex VAT £439.80 inc VAT

Designed for transverse-engined vehicles, the frame will support the engine and/or gearbox when carrying out repair operations like clutch or gearbox removal, DMF change, removing and replacing engine and gearbox mounts, for cam belt replacement, etc.

  • Robuste Konstruktion
  • Universell verwendbar
  • Keine Motor- / Getriebeheber (Hebekrane) erforderlich
  • Zur Verwendung mit aktuellen Fahrzeugmodellen, wo keine oberseitigen Stützträger genutzt werden können
  • Komplette Bedienungsanleitung beiliegend
TSP: £366.50 ex VAT £439.80 inc VAT
 Buy Locally

Press Release
Secure support for the engine or gearbox when working on a vehicle hoist

On transverse engined vehicles when carrying out operations like clutch or gearbox removal the usual method for supporting the engine is the transmission jack. But, and it’s a big but, once the jack is in place, the hoist cannot be lowered or raised. The answer is the new engine and gearbox support beam (part number 5750) from Laser Tools.

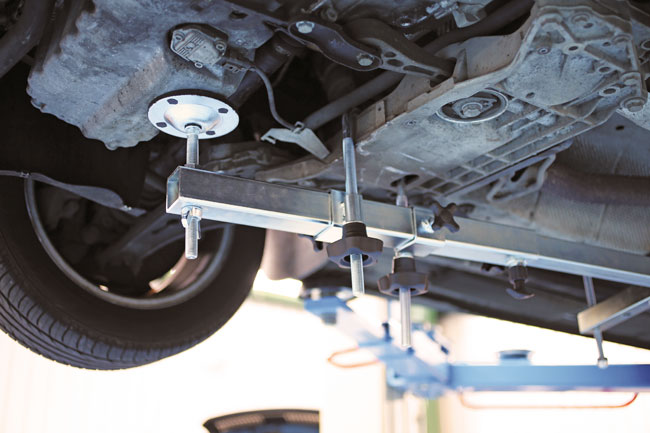

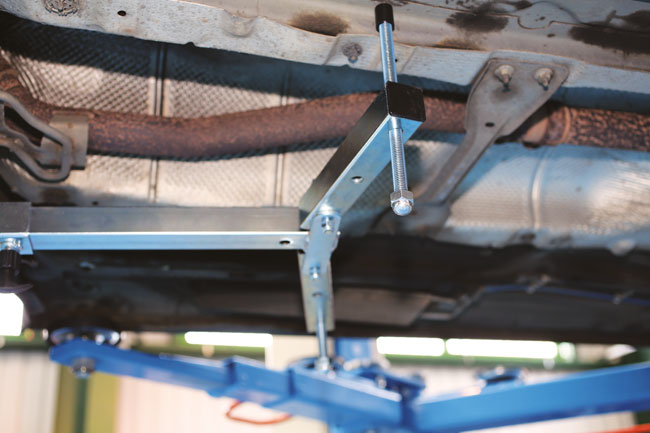

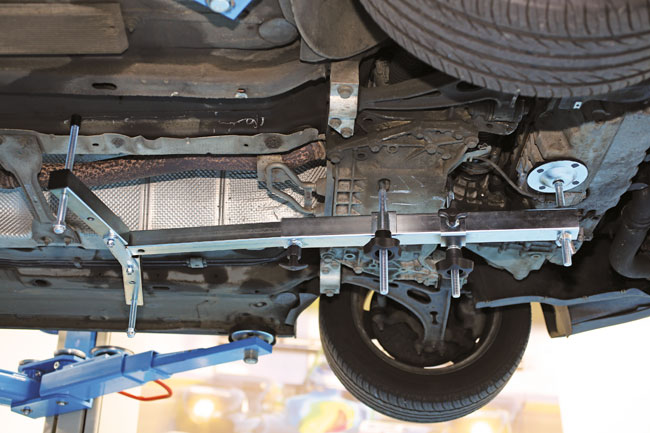

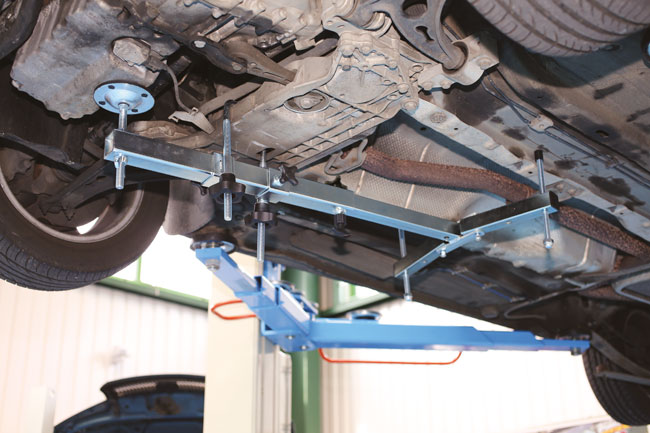

The support beam is quickly and easily fitted, hooking under and pivoting on the main crossmember, then the weight of the engine is transferred to the rear support legs letting the engine or gearbox height be easily adjusted from underneath. Once locked into position the engine or gearbox is safely supported and the vehicle hoist can be lowered or raised.

As well as being a terrific timesaver, the support beam makes things accessible and difficult jobs become easy. A great advantage when removing the engine mounts to gain access during a cam belt change for example.

For further details, please contact the Marketing Department: 01926 818196

Watch the video on the Tool Connection YouTube channel: http://youtu.be/OxKH9s4oLNg
